BHI NEDSP1962-KBD - amplified DSP noise cancelling speaker retrofit module

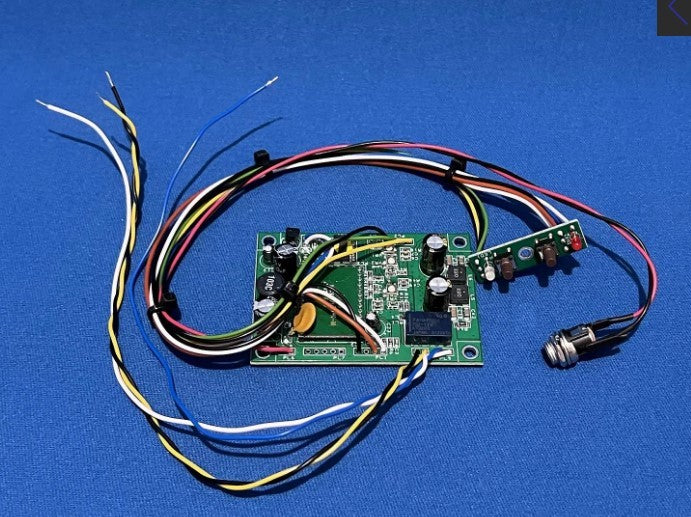

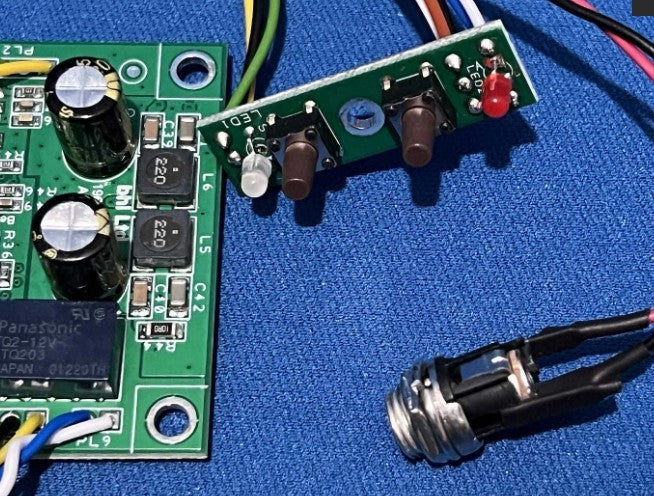

The NEDSP1962-KBD amplified DSP noise cancelling module can be retrofitted inside many types of extension speakers or older style radios and transceivers. It incorporates unique Digital Signal Processing (DSP) technology which can identify speech within a noisy signal and can provide up to 40 dB of noise reduction and 65 dB of tone reduction. The module is pre-wired and with a built-in power amplifier allowing it to be easily incorporated into existing equipment. All the module functions are controlled by the pre-wired keypad switch assembly. The NEDSP1962-KBD uses a powerful programmable DSP audio processing chip with DSP noise cancellation technology inside. This high performance chip delivers exceptional sound quality and incorporates a complete audio signal chain with 16-bit A/D converters and digital interfaces using a fully flexible digital processing architecture. The audio amplifier stage is provided by a Texas Instruments 7W Mono Class-D Audio Power Amplifier chip which has 94% efficiency, eliminating the need for heatsinks.
Specification:
DC Characteristics
Parameter |
Test Conditions |
Min |
Typ. |
Max |
Unit |
Supply Voltage |
10 |
16 |
18 |
V |
|
Quiescent Current |
Vs = 10V to 18V |
5.4 |
7 |
mA |
|
Quiescent Current with DSP On, No Load & No Signal |
Vs = 10V to 18V |
70 |
80 |
mA |
|
Current at Max Audio |
400mA |
|
