FOR USE WITH THE BHI EQ20 DSP UNIT FOR EXCELLENT AUDIO!
Description:

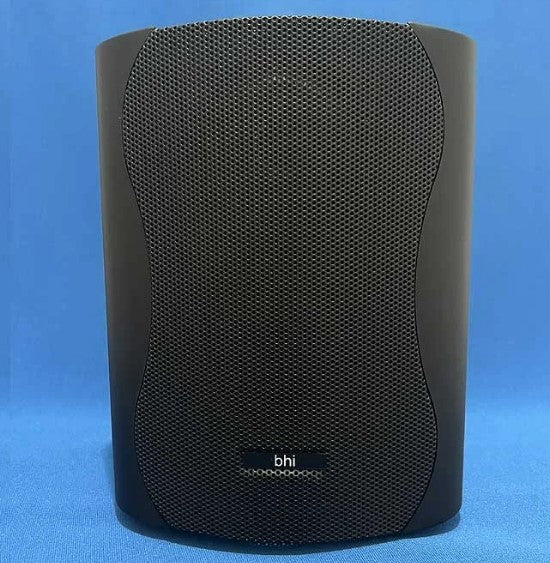

The EXTSPK25 single 2-way speaker can be used with a wide range of radio communications equipment, including the bhi ParaPro EQ20 DSP audio range and the bhi Dual In-Line module. The EXTSPK25 speaker has a removable swivel metal mounting bracket with 2 keyhole mounting slots that can be easily removed. It can be mounted vertically or horizontally and is supplied with a 2m quality audio cable with a 3.5mm (1/8") mono plug on one end and bare ends on the other. When listening to stereo signals on the ParaPro EQ20 range, two EXTSPK25 speakers are required, just add another one to your basket if you want stereo. For connection to a 3.5mm stereo socket with two EXTSPK25 speakers, the bhi ALD-Y01 splitter cable adapter is required. This adapter cable combines the mono inputs into stereo.
Connections:

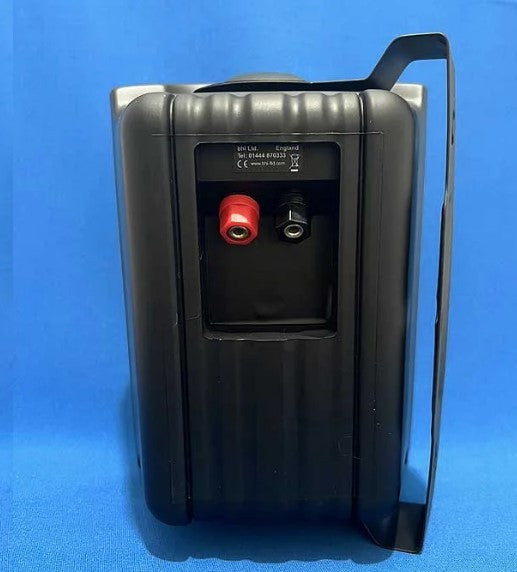

Connect the bare ends of the supplied audio cable to the 4mm terminals of the EXTSPK25 (+ve red, -ve black) and the 3.5mm mono plug to the extension speaker socket of your radio or receiver. Ensure the red core is connected to the red 4mm terminal.
Supplied with:

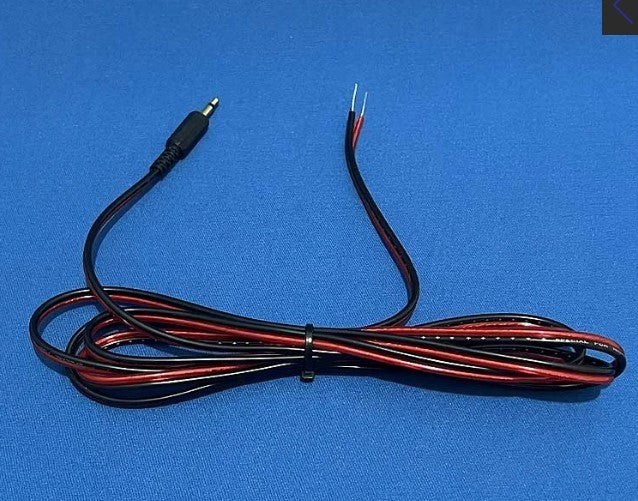

Single 2-way speaker supplied with a 2m long fig-8 audio cable (30 x 0.12mm) terminated with a 3.5mm (1/8") mono jack plug and tinned bare ends.
Optional extras:
Set of protective rubber feet, order code DESKTOP-FEET
ALD-Y01 Adapter cable 3.5mm stereo plug to 2 x 3.5mm mono sockets, 0.5m length
EXTSPK25 2-way speaker with 2m cable (for stereo)
Features
- 4" LF driver and 1" HF tweeter
- Full range audio output, frequency response 70Hz -18kHz
- Sensitivity: 88 dB
- Impedance: 8 Ohm
- Rated power: 25W RMS, 50W Max
- Speaker connections: 4mm screw terminal connections
- Removable swivel metal mounting bracket
- External width: 160mm External depth: 150mm
- Weight: 1.5kg
- Two speakers are required for stereo use
