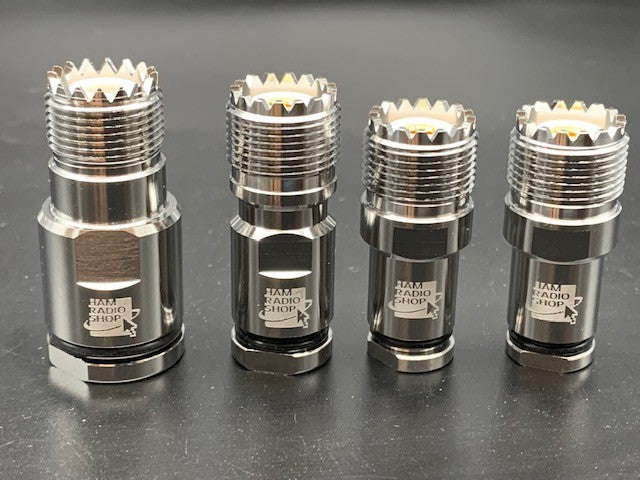

SO-239 UHF FEMALE CONNECTOR HRS SO239PRO5
COMPRESSION SO-239 UHF FEMALE FOR Ø 5 MM CABLES
The connector SO239PRO5 is part of the exclusive range of professional RF connectors under the HRS brand and logo, compression SO-239 (UHF Female) version for 5 mm cables.
Product Description
The HRS SO239PRO5 is the professional SO-239 UHF Female compression connector for coaxial cables of 5 mm. The female version of the classic UHF connector, compatible with RG-58, Hyperflex 5, H 155 and all major 5 mm cables. Waterproof design, no braid soldering.
Compatible Coaxial Cables (Ø 5 mm)
- HRS: RG-58, RG-142, Superflexy 5, HF 214UF
- Messi & Paoloni: Hyperflex 5, Airborne 5
- Siva Cavi: RG-223U, RG-174
- Belden: H 155
- Other equivalents: Ecoflex 5 and Ø 5 mm cables
Key Features
Quick compression assembly, no risk of damaging the dielectric.
Waterproof for permanent outdoor installations.
Tight mechanical tolerances to minimise SWR and RF losses.
SO-239 (UHF Female) connector compatible with all standard PL-259s.
Technical Specifications
| Model Code | HRS SO239PRO5 |
| Brand | HRS (HamRadioShop Original) |
| Connector Type | SO-239 UHF Female |
| Cable Diameter | Ø 5 mm |
| Impedance | 50 O |
| Mounting | Compression (no soldering) |
| Protection | Waterproof / Fully watertight |
| Warranty | Official HamRadioShop Warranty |
