SO-239 UHF FEMALE CONNECTOR HRS SO239PRO10
SO-239 UHF FEMALE COMPRESSION CONNECTOR FOR Ø 10 MM CABLES — RG-213, RF 400, HF 400, LMR 400, Superflexy 10, ULTRAFLEX 10, Hyperflex 10

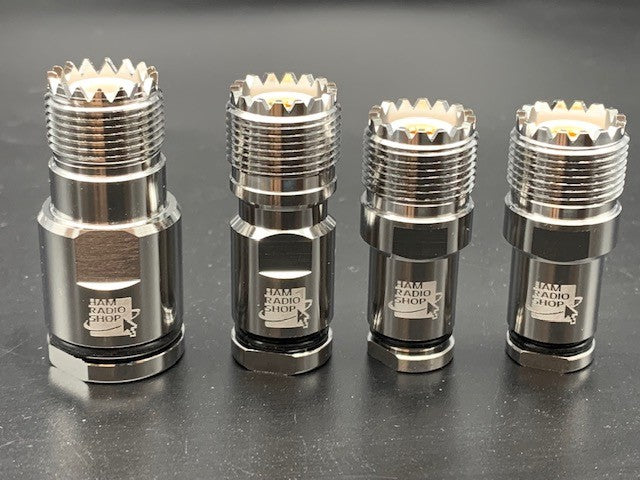

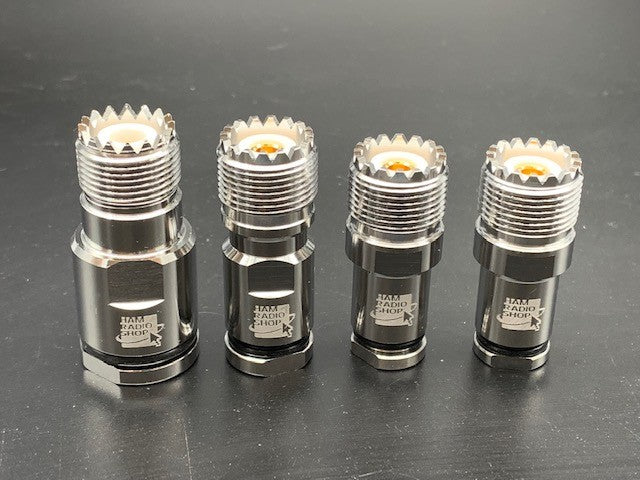

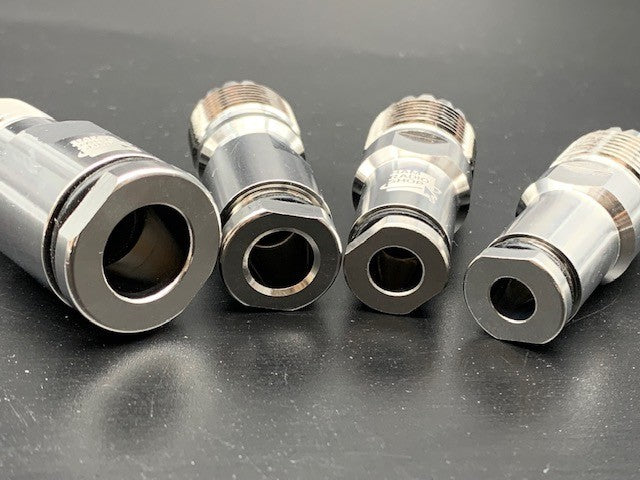

The SO239PRO10 connector is part of the exclusive range of professional RF connectors with the HRS brand and logo, an in-line SO-239 UHF female compression version for large 10 mm cables.
Product description
The HRS SO239PRO10 is the professional in-line SO-239 UHF female compression connector for 10 mmcoaxial cables. Compatible with the main low-loss cables: RG-213, LMR 400, Ultraflex 10, Ecoflex 10. Waterproof design, no braid soldering.
Compatible coaxial cables (Ø 10 mm)
- HRS: RF 400UF, HF 400PE, Superflexy 10, RG-213plus
- Messi & Paoloni: Ultraflex 10, Hyperflex 10, Extraflex 10, Broadpro50, Airborne 10, RG-213 / RG-213Plus
- SivaCavi: RF-400UF, RG-213, RG-214 A/U
- Belden: H 2000 Flex, H 1000, H 1001
- Other equivalents: Aircom Plus, LMR 400 (MMR 400), Ecoflex 10 and similar
Key features
Quick compression assembly, no risk of damaging the dielectric.
Waterproof for permanent outdoor installations.
Tight mechanical tolerances to minimise SWR and RF losses.
Compatible with all standard PL-259 connectors.
Technical specifications
| Model code | HRS SO239PRO10 |
| Brand | HRS (HamRadioShop Original) |
| Connector type | SO-239 UHF female (in-line) |
| Cable diameter | Ø 10 mm |
| Impedance | 50 O |
| Assembly | Compression (no soldering) |
| Protection | Waterproof / Fully watertight |
| Warranty | Official HamRadioShop warranty |
