90° screw-on SO-239 for RG-58

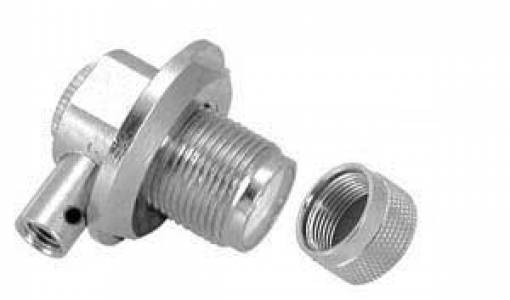

UHF female (SO-239) 90° screw-on connector with cap, for RG-58U cable
UHF female (SO-239) 90° connector of the screw-on type, with cap, for RG-58U cable. Nickel-plated brass body and delrin insulator.
Specifications
| Type | UHF female (SO-239) 90°, screw-on, with cap |
| Cable | RG-58U |
| Body | Nickel-plated brass |
| Insulator | Delrin |
| Impedance | 50 Ω |
| Frequency | 0–300 MHz |
| Maximum voltage | 500 V AC (1,500 V AC for 1 minute) |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 5,000 MΩ at 500 V DC |
