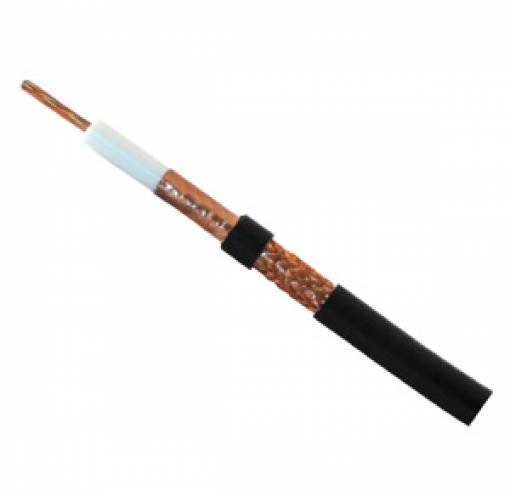

RF-400UF HRS LOW LOSS
LOW LOSS COAXIAL CABLE DOUBLE SHIELDED
50 meter reel
- Inner conductor: Red copper
- Conductor diameter: 7 x 1 mm
- Dielectric: foamed polyethylene - Ø 7.25 mm + 0.18 mm
- Shield: copper foil / polyester - h 27 mm - Coverage: 100%
- Braid: Red copper - 112 x 0.16 mm - Coverage: 73%
- Jacket: PVC2 Ø 10.3 mm + 0.18 mm
- Impedance: 50 Ohm + 3
- Velocity of propagation: 84%
- Capacitance: 80 pF/m
- Shielding effectiveness:
> 80 dB (100-900 MHz)
> 70 dB (900-2000 MHz)
> 60 dB (2000-3000 MHz) -
Cable weight:
- Copper: 81.0 kg/km
- Plastic: 63.8 kg/km
- Total 144.8 kg/km
