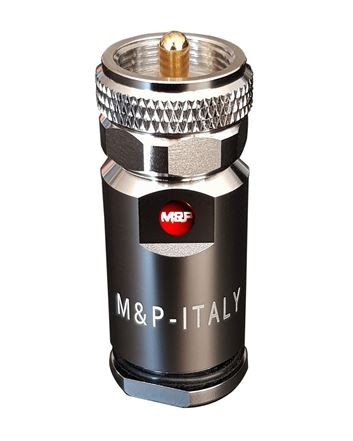

"PL259" MALE SOLDER TYPE
Compatible with:
AIRBORNE 10 | BROAD PRO50 C | EXTRAFLEX BURY |
HYPERFLEX 10 | RG 213 PLUS | ULTRAFLEX 10 |
SIVA RF-400 cables
Why choose this connector?
• Compression design with double rubber gasket, which provides double protection against water infiltration, humidity or condensation.
• Dramatic suppression of background noise, improved shielding effectiveness and insertion loss.
• Assembly and soldering instructions included in the package (no need to solder the braid).
• Thanks to the new pin, excess solder is prevented, as well as the consequent heat that would cause uncontrollable alterations to the dielectric and damage to the cable properties. When using standard PL259s, soldering exposes the dielectric to significant thermal stress.
• In standard PL259 connectors, it is necessary to fill the central pin hole by soldering with tin; the rounded pin of the EVO connector facilitates insertion and solder burrs will no longer be an issue.
• The new UHF Evolution can be comfortably used up to 6000 MHz. Just think that a well-made PL259 is barely acceptable up to 2000 MHz. Never has a PL come so close to "N" connectors in terms of performance and reliability!
