High-performance vehicle antenna for CB transceivers supplied with 4m RG58 cable
Original Sirio Antenne product

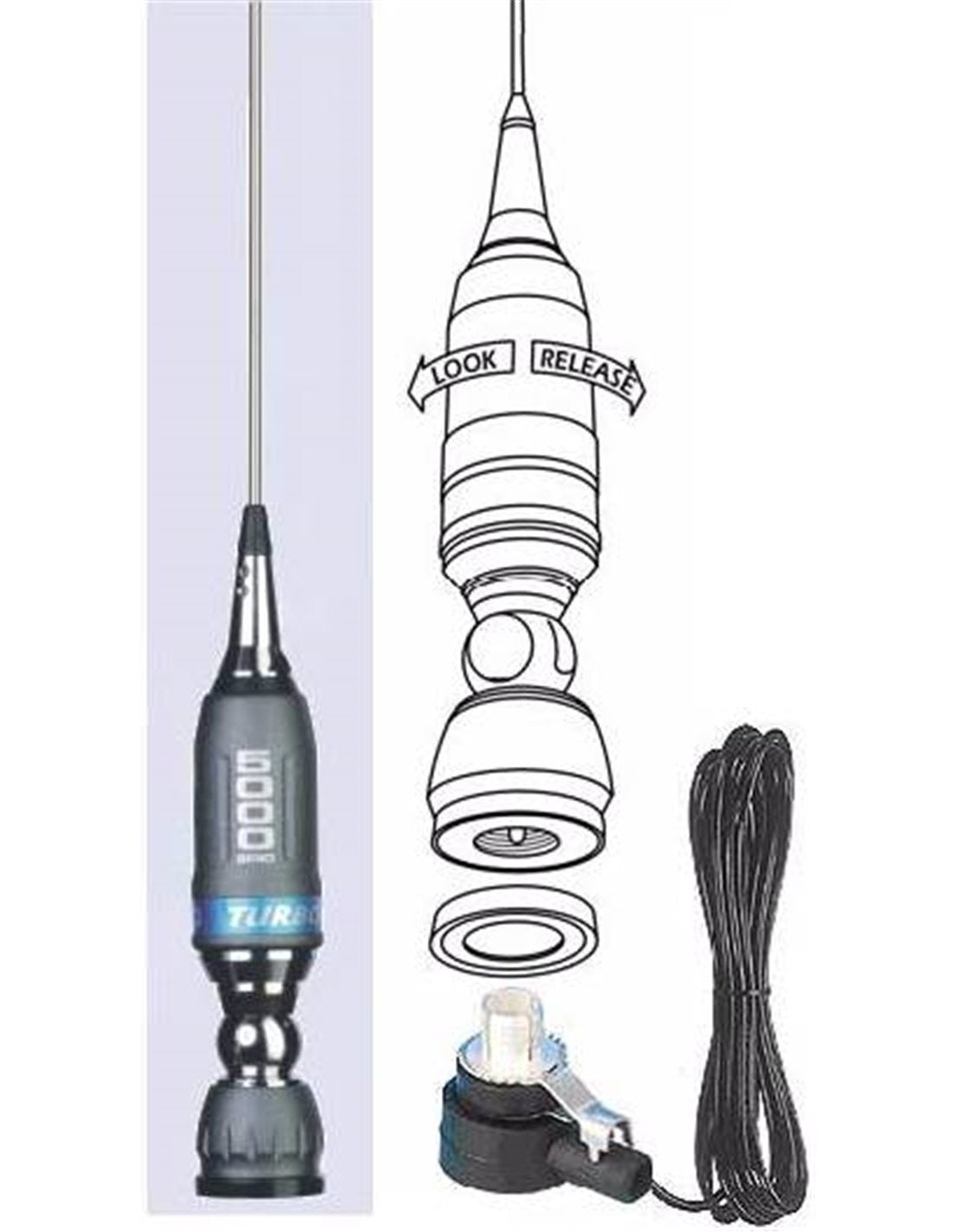

Sirio TURBO 5000 is a robust antenna with excellent performance thanks to the materials used and its careful design. The natural coloured conical whip, made of 17/7 PH stainless steel, is almost 2 metres high and allows for connections similar to those obtainable with fixed antennas under the same conditions.
The metal parts that make up the coil, the support and the connector are made of treated brass. The plastic material covering everything is shock-resistant, weatherproof and UV-resistant.

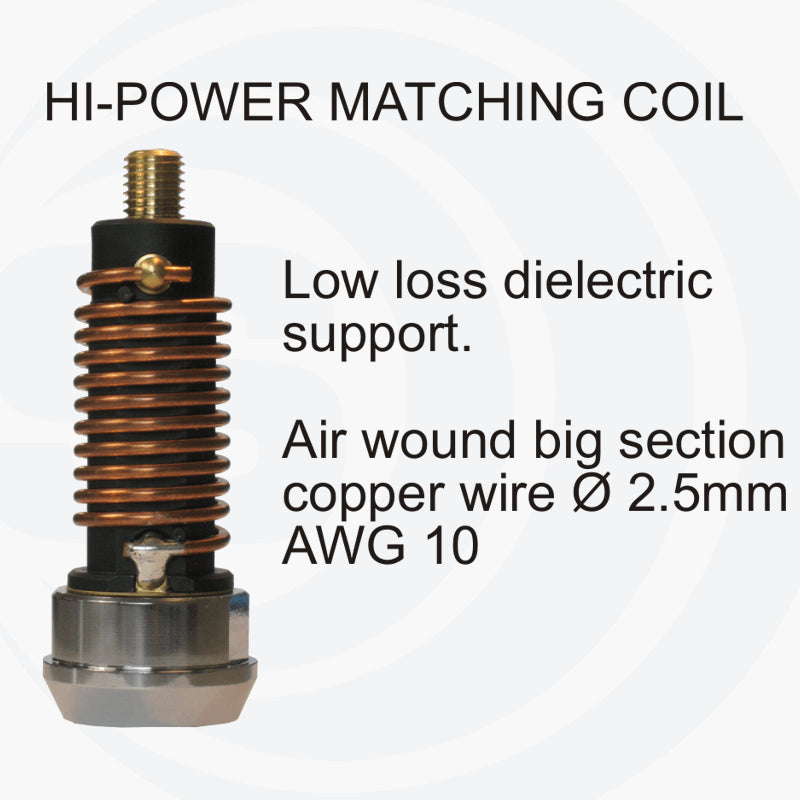

The tuning coil is made of thick copper to withstand the high power for which it was designed, electrically grounded for lower background noise and protection of the transceiver from electrostatic discharges.
Equipped with a swivel joint with clutch that allows the antenna to be removed from the support or locked at the desired inclination up to 90 degrees relative to the base, all using only hands without the use of tools.
TECHNICAL DATA:
- Type: omnidirectional base-loaded
- Electrically grounded
- Range: 27-28.5 MHz
- Impedance: 50 ohm
- Polarization: vertical
- Bandwidth: SWR 2:1 - 2000 KHz
- Max.PW: 1500 Watts (CW) continuous, 5000 Watts (CW) short time.
- Cable: RG 58 supplied, 4 metres
- Height: 1970 mm
- Weight: 650 gr
IN THE BOX:
- 4 metres of RG58 cable
- Antenna support
- Bolts and gaskets
- Coil
- Allen key
- Steel-coloured conical whip
- Instruction manual
