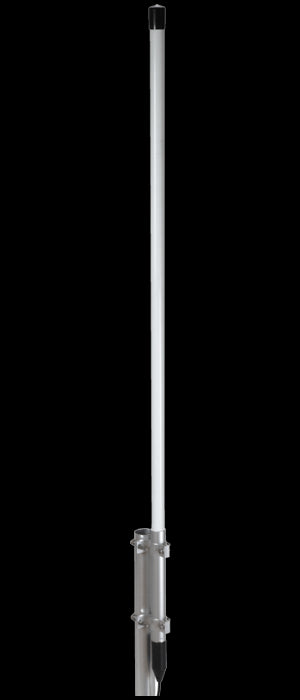

SPO 118-2
PROFESSIONAL BROADBAND ANTENNANNA PROFESSIONALE A BANDA LARGA
NEW PRODUCT
ELECTRICAL DATA: |
|
|---|---|
| Type: | 1/2 ? |
| Radiation: | Omnidirectional |
| Polarization: | Linear Vertical |
| Frequency band: | TX band: 118-136 MHz @ VSWR ≤1.5 No tuning required RX band: 108-136 MHz |
| Systems: | VHF aeronautical band |
| Gain: | 0 dBd – 2.15 dBi |
| Maximum power: | 100 W (CW) |
| Ground protection: | Short-circuited to ground |
| Connector: | N-female |
MECHANICAL DATA: |
|
|---|---|
| Materials: | Anodized aluminum, Brass, Stainless steel, Fiberglass, EPDM rubber |
| Height (approx): | 1700 mm / 5.58 ft |
| Weight (approx): | 1400 gr / 3.09 lb |

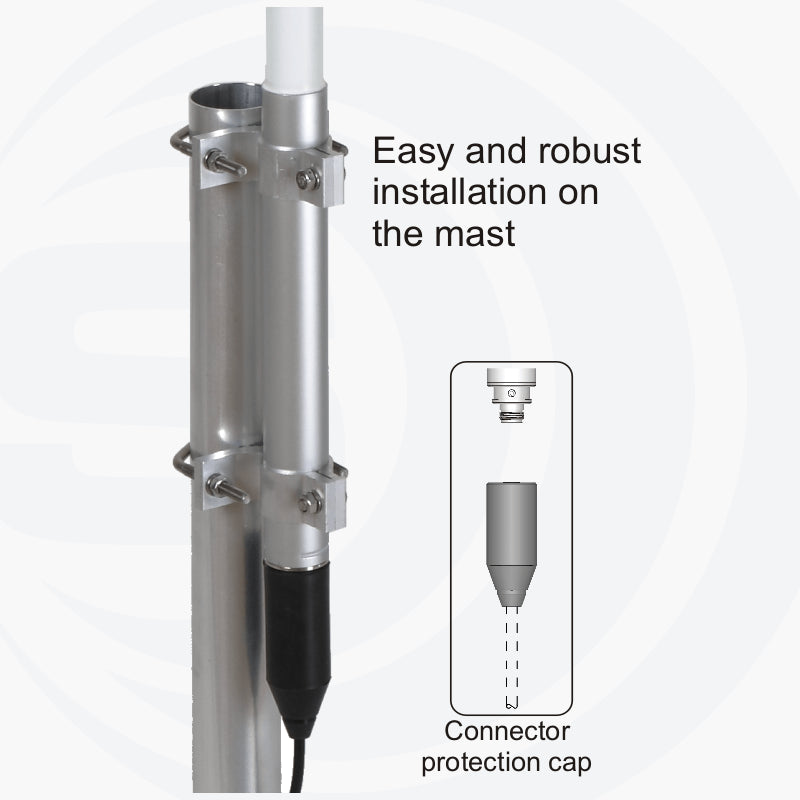

| Mounting type: | On pole |
