Panel antenna, compact size - Full 4G LTE band coverage
Product code:
| P/N: 2111003.00 | SMP 4G LTE |
Electrical Data:
| Type: | Mini panel |
| Radiation: | Directional |
| Polarization: | Vertical Linear |
| Frequency band: | 790-960 MHz & 1700-2700 MHz No tuning required |
| Systems: | GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz |
| Gain: | LTE 800 & GSM: 6÷7 dBi @ 790-960 MHz DCS: 9 dBi @ 1710-1880 MHz UMTS: 9 dBi @ 1920-2170 MHz LTE & WLAN: 8÷9 dBi @ 2300-2700 MHz |
| Max power: | LTE 800 & GSM: 30 Watts (CW) @ 790-960 MHZ DCS: 15 Watts (CW) @ 1710-1880 MHz UMTS: 10 Watts (CW) @ 1920-2170 MHz LTE & WLAN: 10 Watts (CW) @ 2300-2700 MHz |
| Cable length / type: | 30 cm (11.81 in) / Low-Loss |
| Connector: | SMA-male, Other types on request |
Mechanical Data:
| Materials: | Galvanized steel, UV stabilized thermoplastic, PCB |
| Dimensions (approx): | 154 x 134 x 46 mm / 0.51 x 0.44 x 0.15 ft |
| Weight (approx): | 400 gr / 0.88 lb |

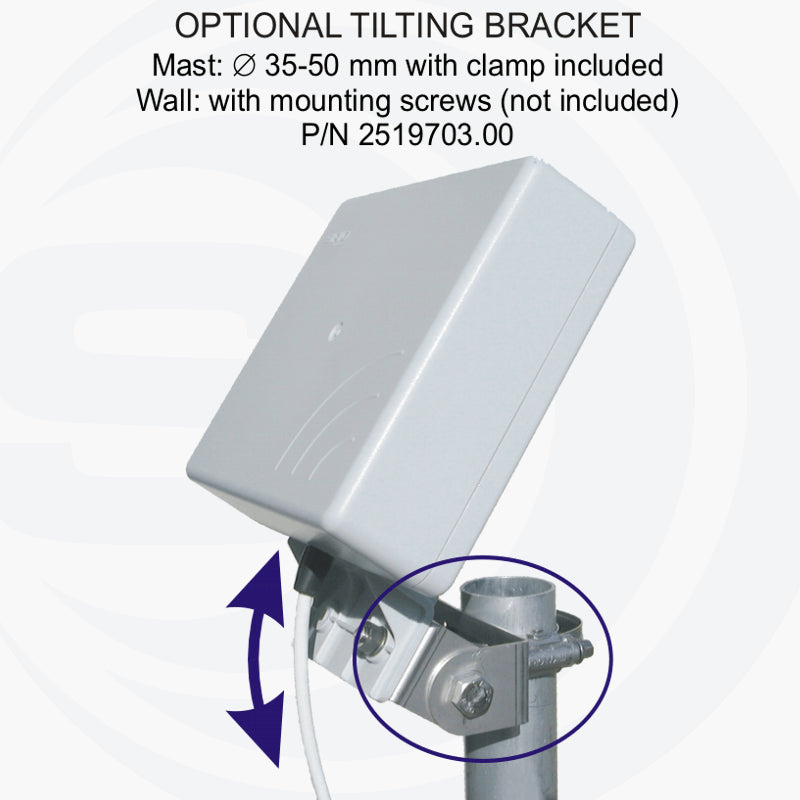

| Mounting type: | On pole, Wall |
