MONODIP

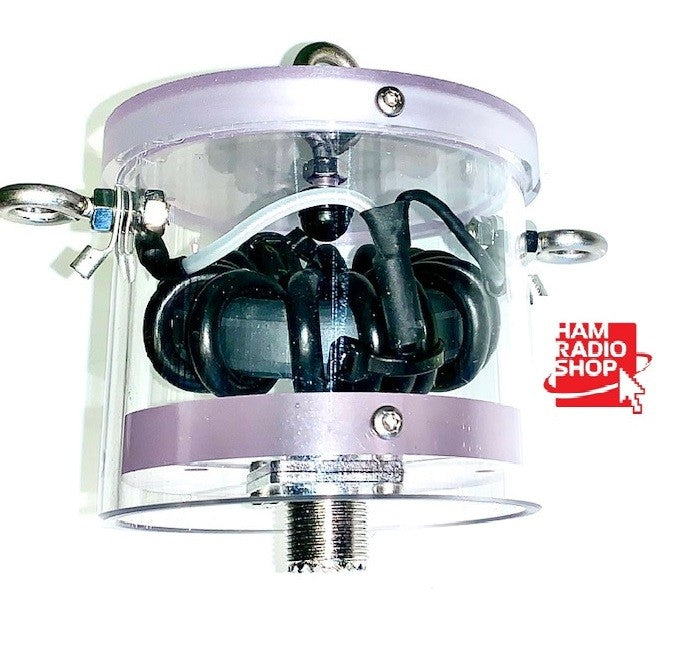

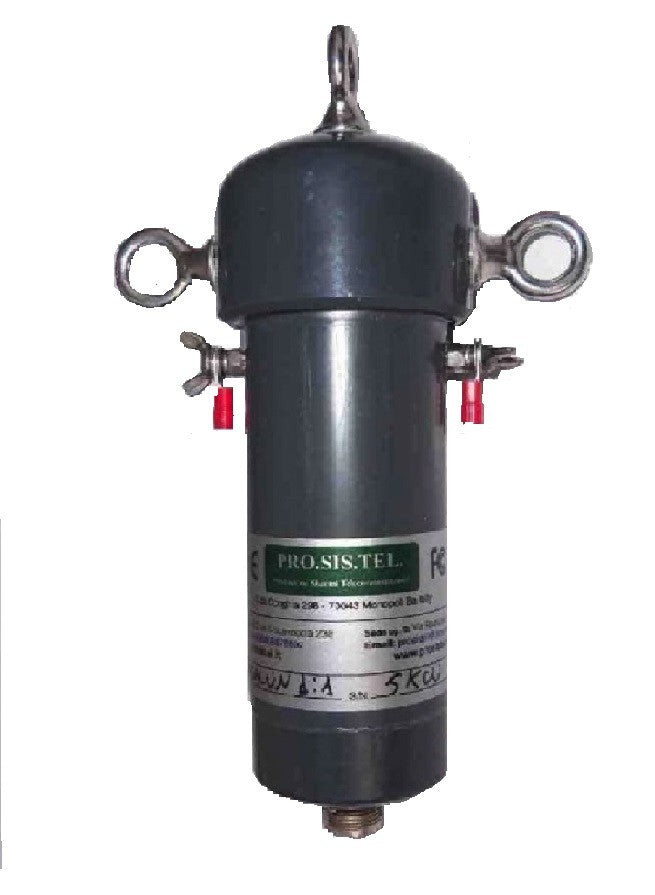

Single-band 1/2 wave wire dipole antenna with insulated center or balun

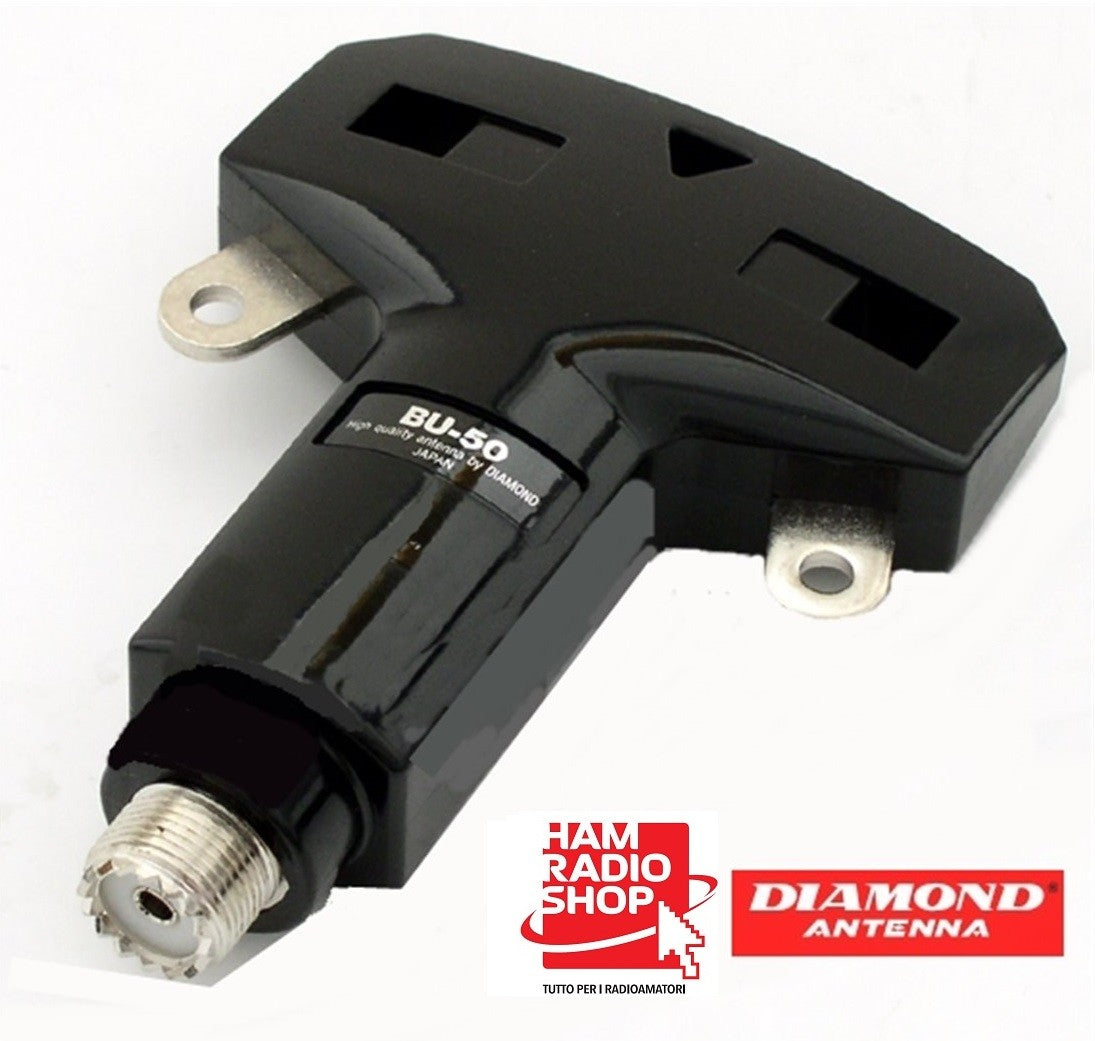

- Center with SO-239 connector.
- UV resistant coated copper braid

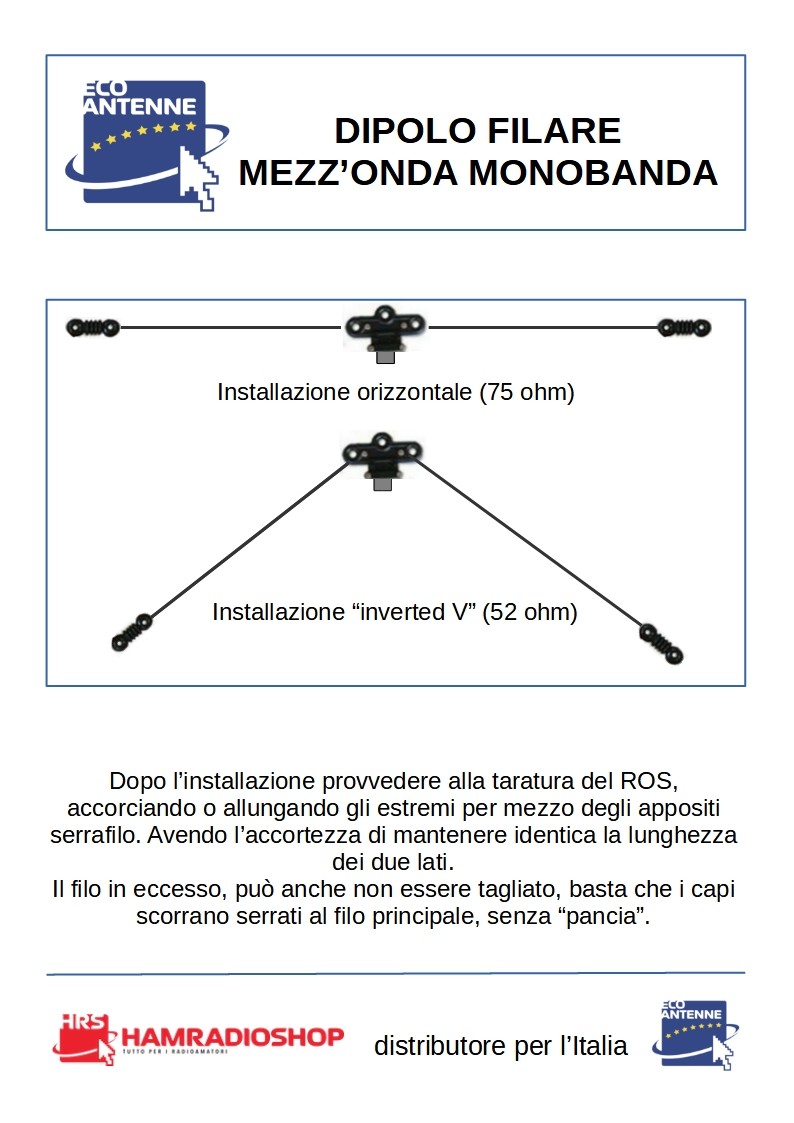

- 75 Ohm impedance if mounted in horizontal configuration, 50 Ohm if mounted in inverted V configuration
- Directivity: front/back if mounted horizontally, omnidirectional if mounted in inverted V
- Gain: 2.1 dBi
- Max power: depending on the chosen center or balun
- SWR 1.7:1 (on 50 Ohm line) at the resonant frequency in horizontal configuration, 1.2:1 (on 50 Ohm line) in inverted V configuration.
- Supplied with a longer terminal braid at each end to be tuned according to the configuration or the height at which it is installed
- The cable diameter varies depending on the band (physical length) and the required power (depending on the required balun)
