MONODIP

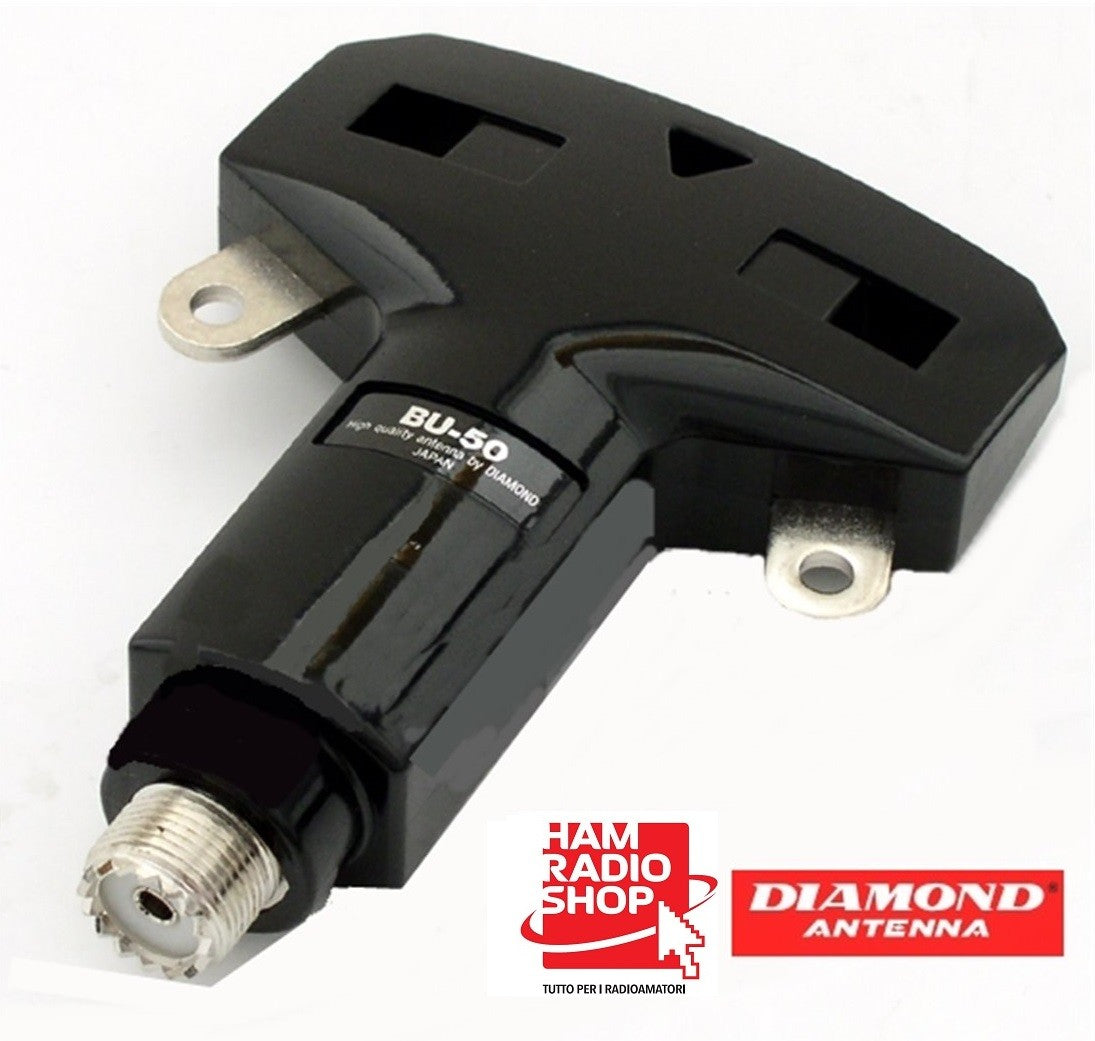

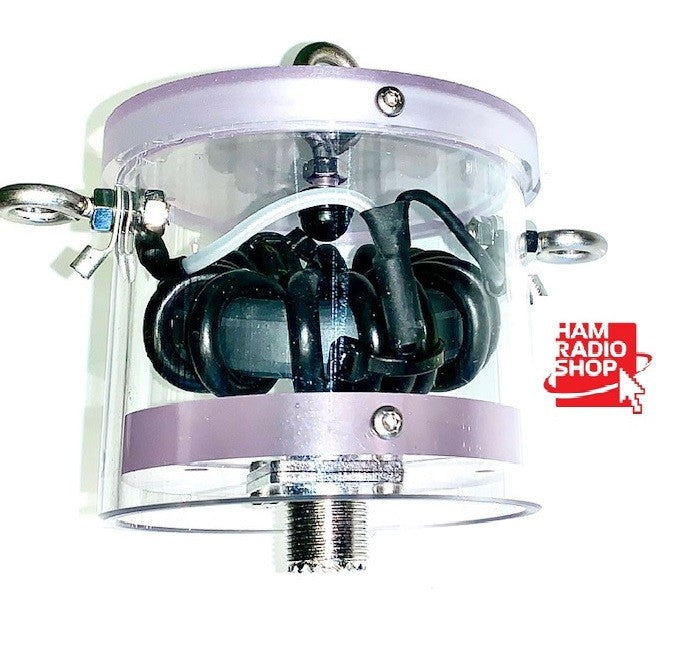

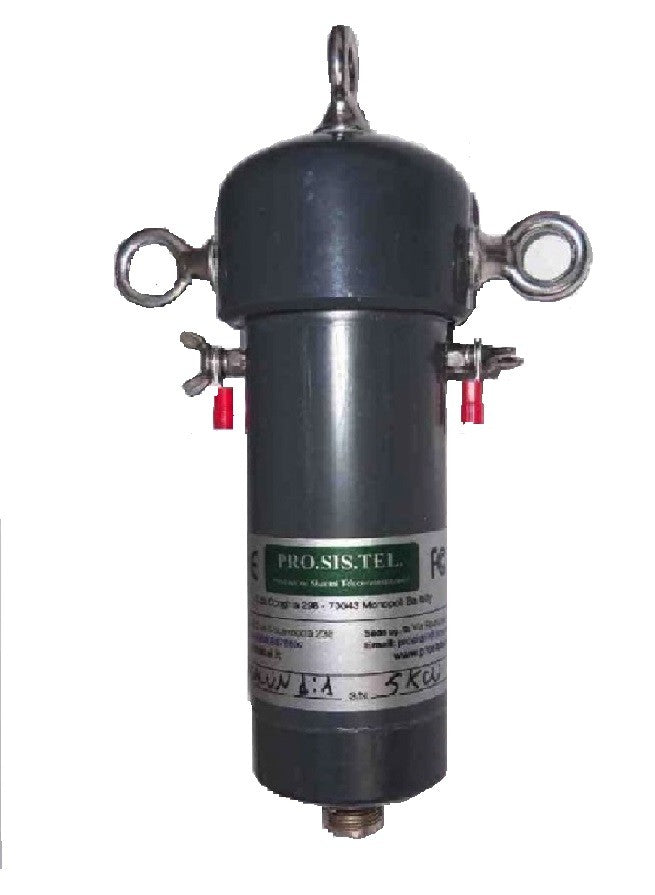

Monoband 1/2 wave wire dipole antenna with insulated center or balun
- Center with SO-239 connector.
- UV-resistant coated copper braid

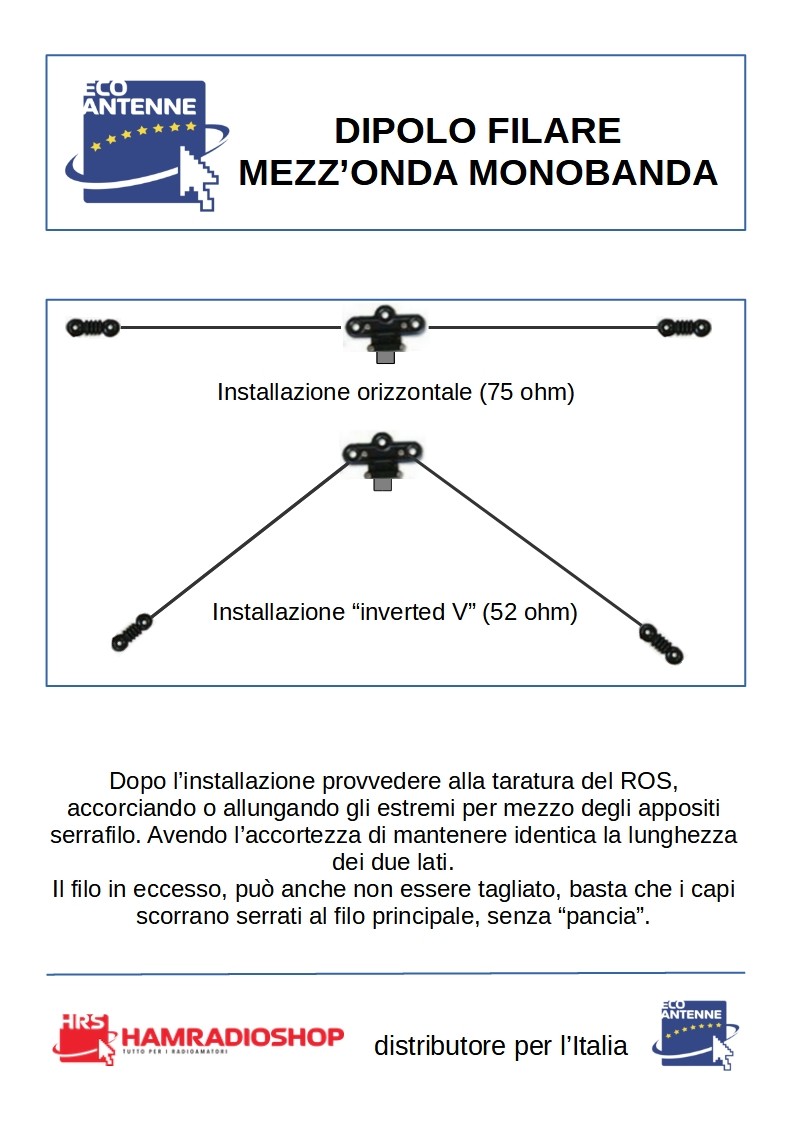

- 75 Ohm impedance when mounted in a horizontal configuration, 50 Ohm when mounted in an inverted V configuration
- Directivity: front/back when mounted horizontally, omnidirectional when mounted in an inverted V
- Gain: 2.1 dBi
- Max power: depending on the chosen center or balun
- SWR 1.7:1 (on 50 Ohm line) at resonant frequency in horizontal configuration, 1.2:1 (on 50 Ohm line) in inverted V configuration.
- Supplied with a longer terminal braid at each end to be tuned according to the configuration or the height at which it is installed
- The cable diameter varies according to the band (physical length) and the required power (depending on the required balun)
