MONODIP
Monoband 1/2 wave wire dipole antenna with insulated center or balun

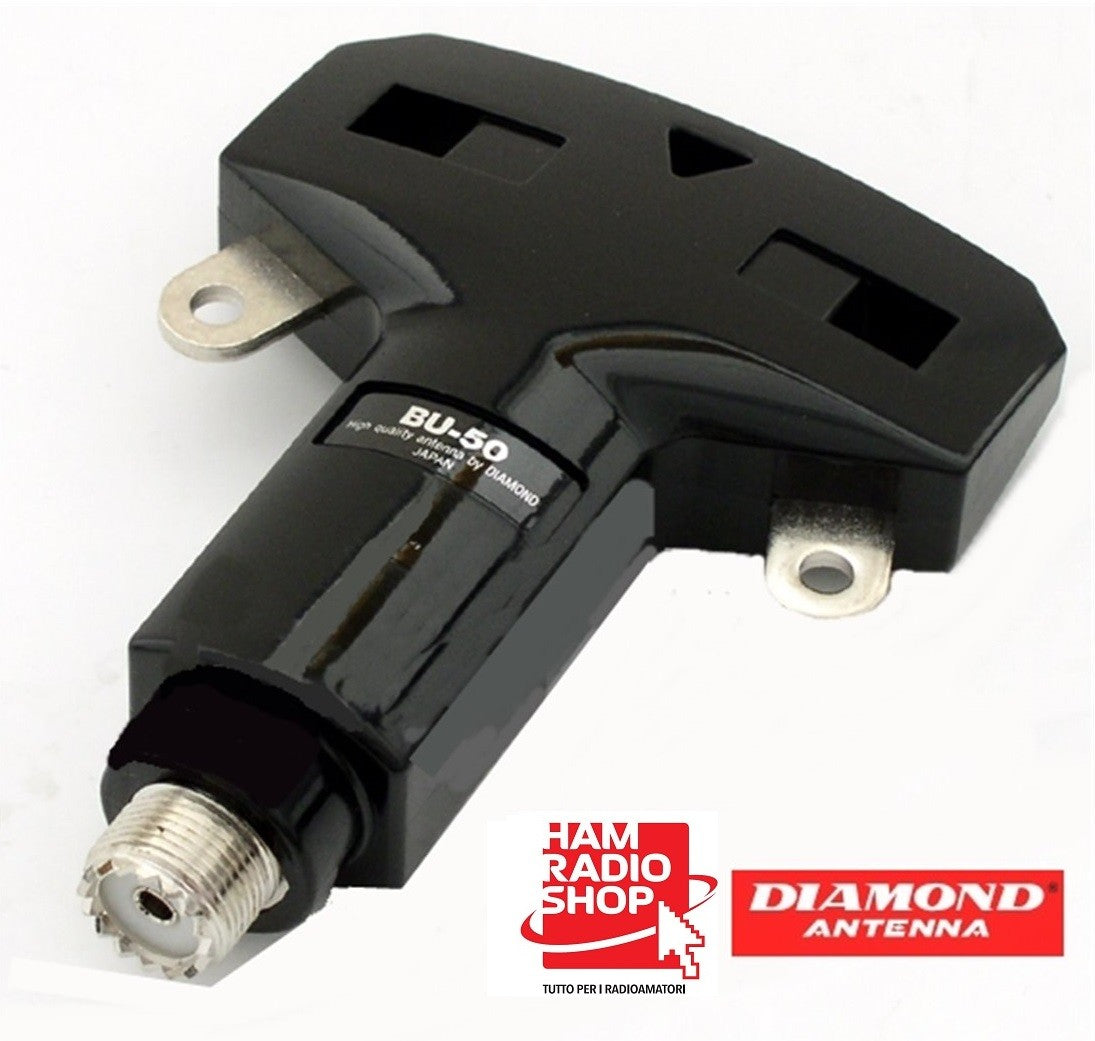

- Center insulator with SO-239 connector.
- UV resistant coated copper braid

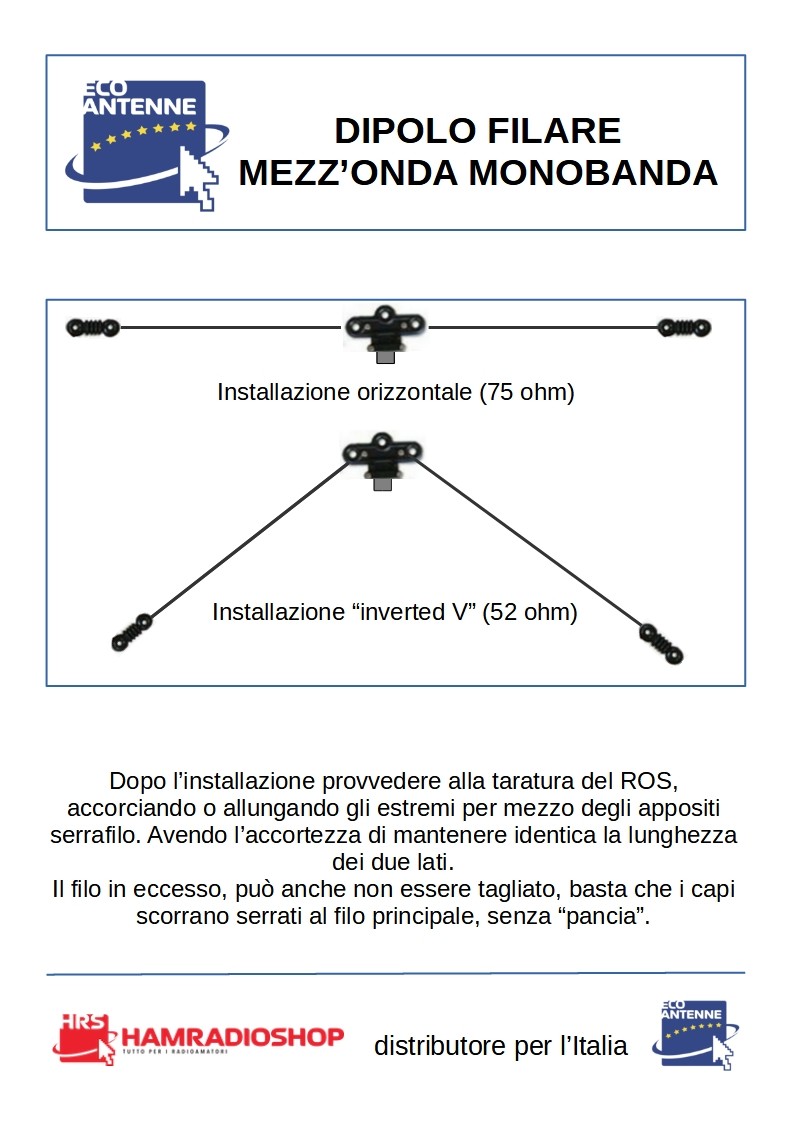

- Impedance 75 Ohm when mounted in a horizontal configuration, 50 Ohm when mounted in an inverted V configuration
- Directivity: front/back when mounted horizontally, omnidirectional when mounted in an inverted V configuration
- Gain: 2.1 dBi

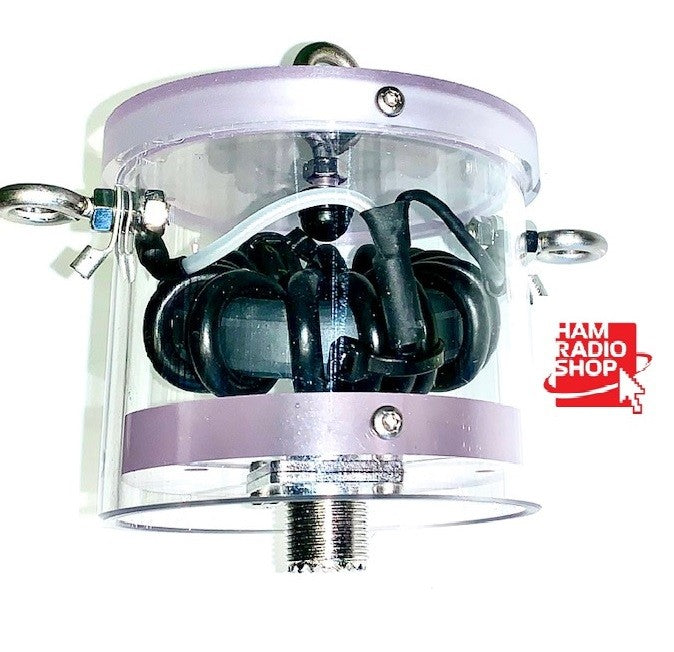

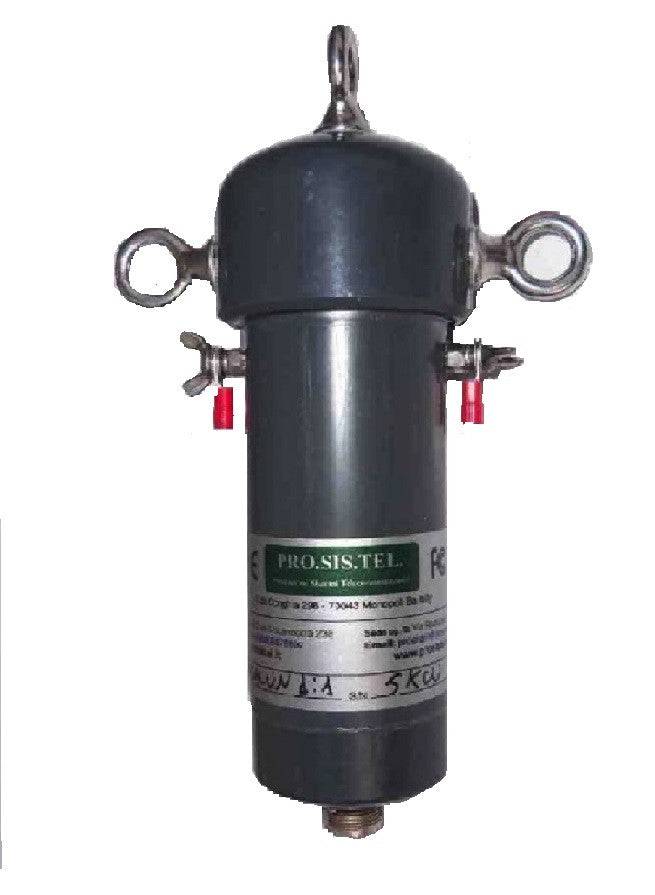

- Max power: depending on the chosen center insulator or balun
- SWR 1.7:1 (on 50 Ohm line) at resonance frequency in horizontal configuration, 1.2:1 (on 50 Ohm line) in inverted V configuration.
- Supplied with a longer terminal braid at each end for tuning according to configuration or installation height
- Cable diameter varies depending on the band (physical length) and the required power (depending on the required balun)
