MONODIP

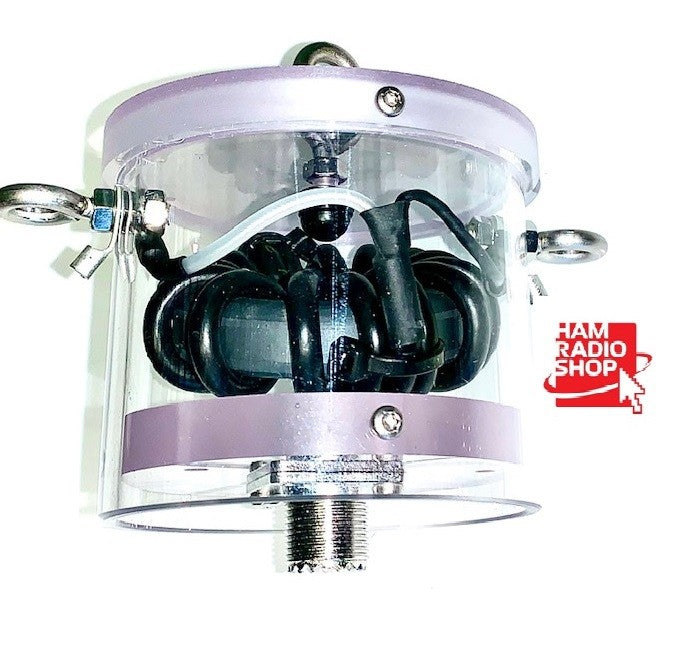

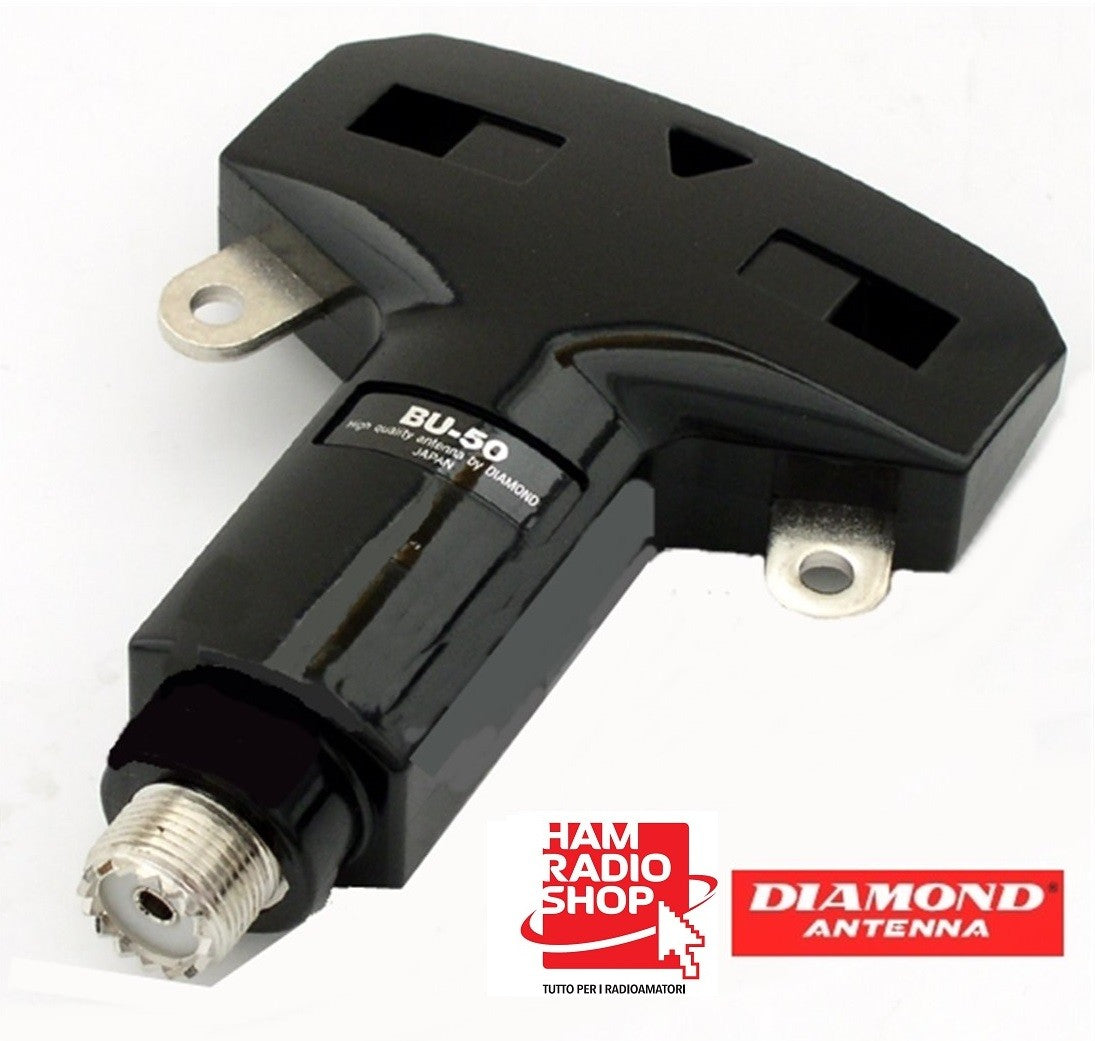

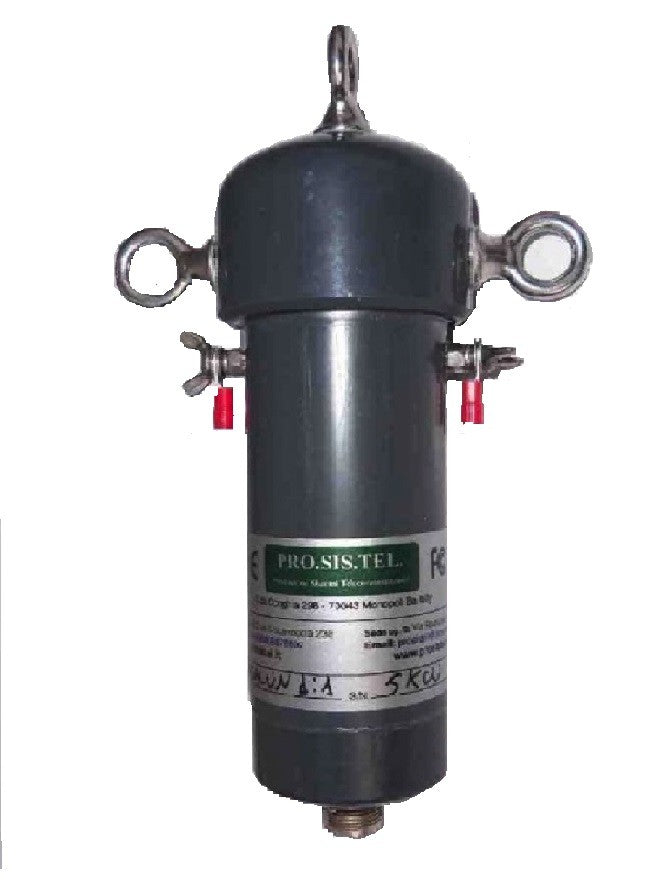

Single-band 1/2 wave wire dipole antenna with insulated center or balun
- Center with SO-239 connector.
- UV-resistant coated copper braid

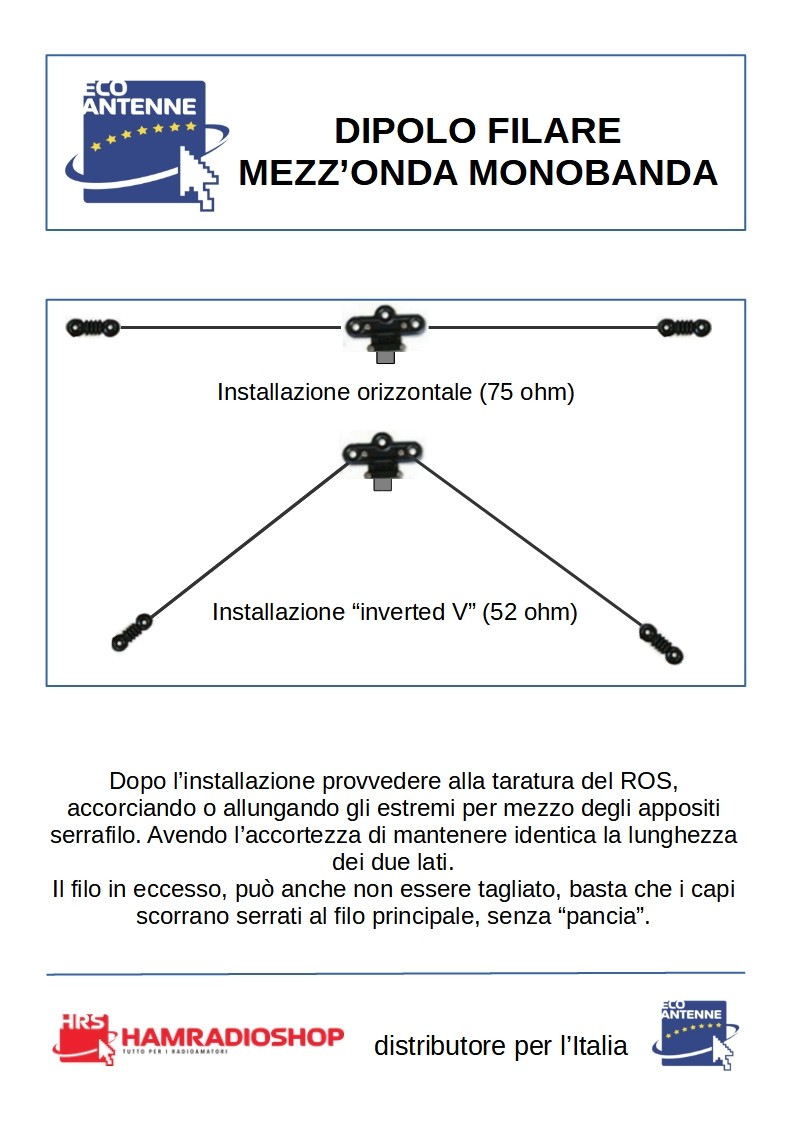

- Impedance 75 Ohm when mounted in horizontal configuration, 50 Ohm when mounted in inverted V.
- Directivity: front/back when mounted horizontally, omnidirectional when mounted in inverted V.
- Gain: 2.1 dBi
- Max power: depending on the chosen center or balun
- SWR 1.7:1 (on 50 Ohm line) at resonant frequency in horizontal configuration, 1.2:1 (on 50 Ohm line) in inverted V configuration.
- Supplied with a longer terminal braid at each end to be tuned according to the configuration or the height at which it is installed.
- The cable diameter varies depending on the band (physical length) and the required power (depending on the required balun).
