TRI16 10/15/20 BT

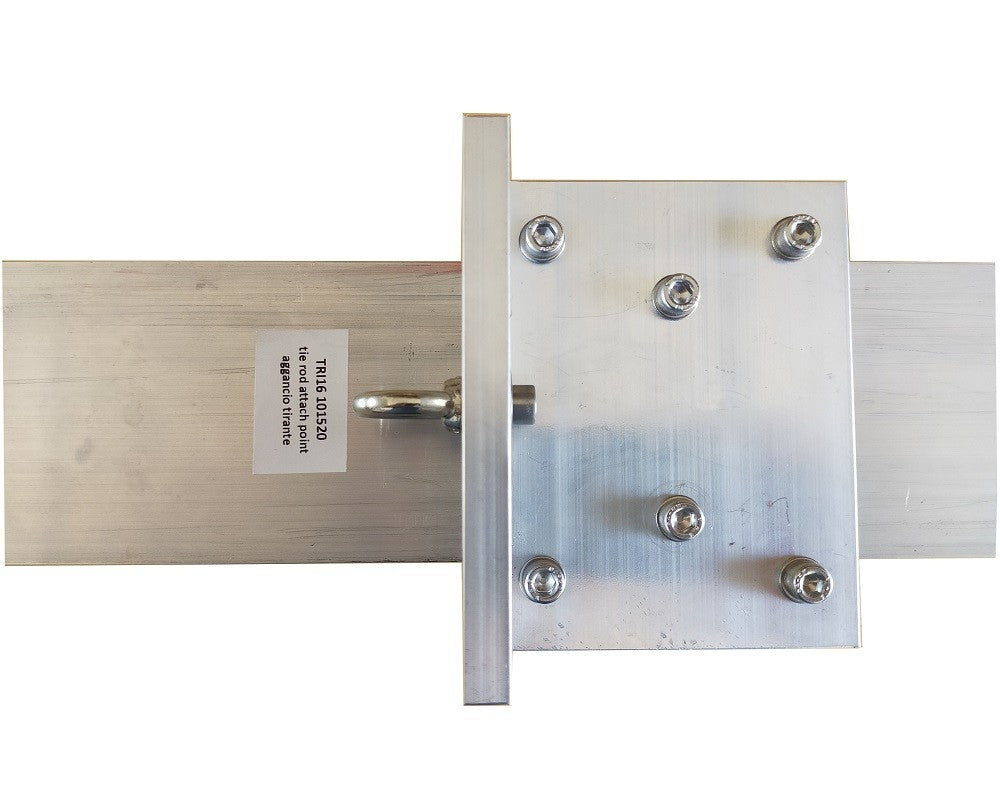

is a superb performance tri-band yagi designed to be installed on large towers. The wide spacing between the elements around the boom-to-mast plate allows it to be installed on towers up to 180 cm / 70 inches per side. It uses sixteen (16) elements on an 11.6 m / 38 ft boom with: 4 element (20M) reflector, driver and two directors; 5 element (15M) reflector, driver and three directors; 7 element (10M) reflector, driver and five directors.
Requires only one coaxial cable. Requires a medium/heavy-duty rotor.
RF Choke: 3kW included
Availability: 6 weeks
| TRI16 10/15/20 BT | 10m Band | 15m Band | 20m Band |
|---|---|---|---|
| Gain dBi: (20 meters from ground) |
16.0 | 15.5 | 14.6 |

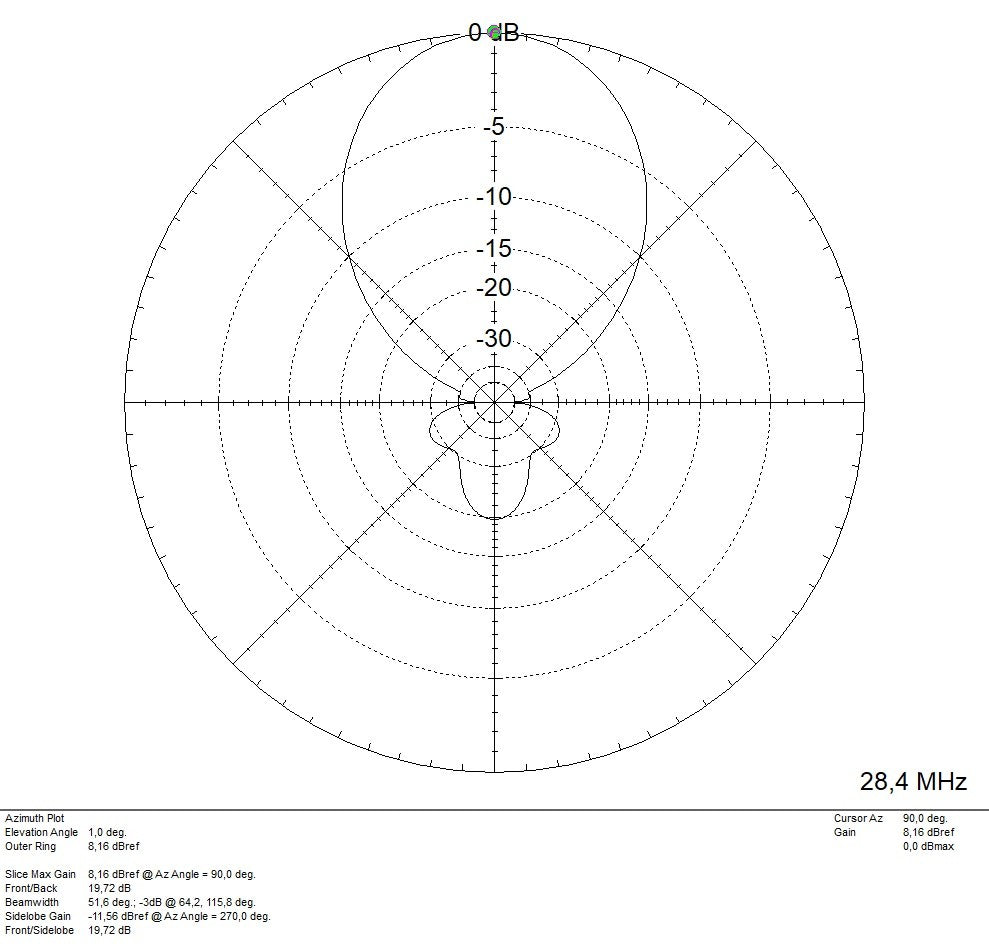

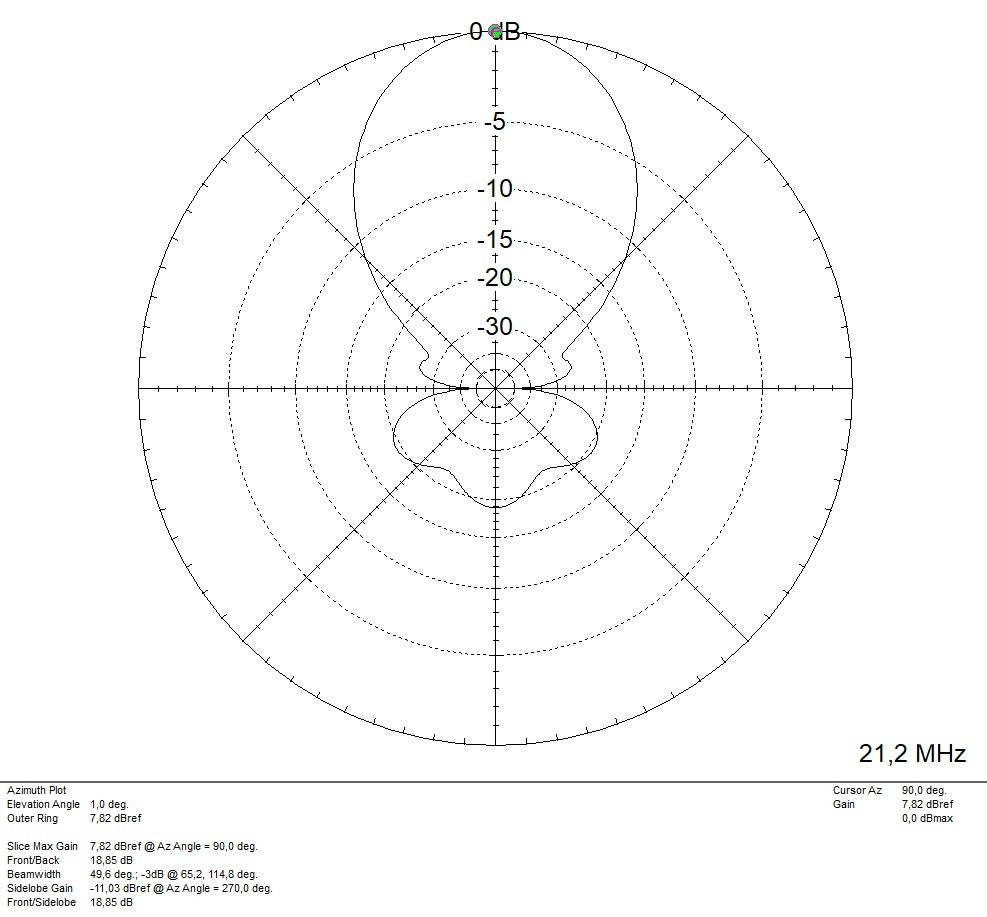

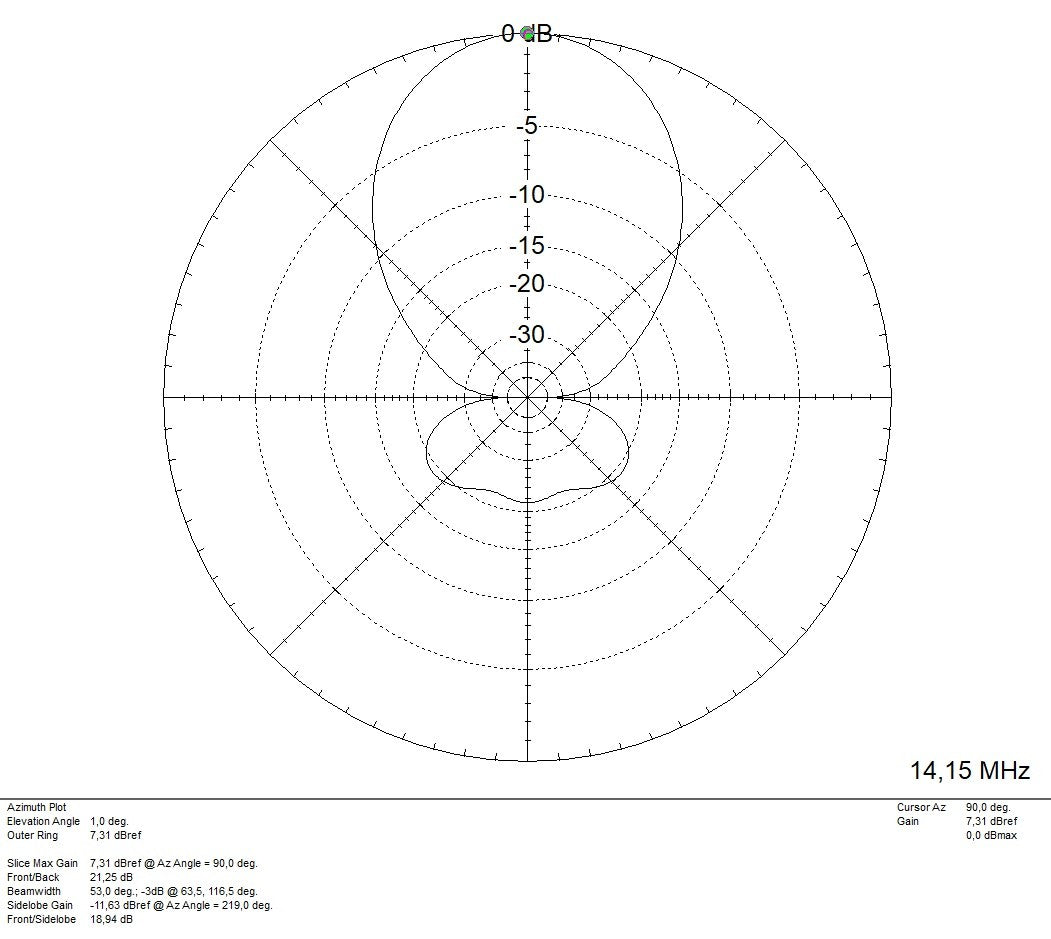

| Free Space Gain in dBd: | 8.16 | 7.82 | 7.31 |
| F/B: | 30 | 30 | 20 |
| Active Elements: | 7 | 5 | 4 |
| Bandwidth kHz S.W.R. = 1.5:1 |
800 | 450 | 350 |

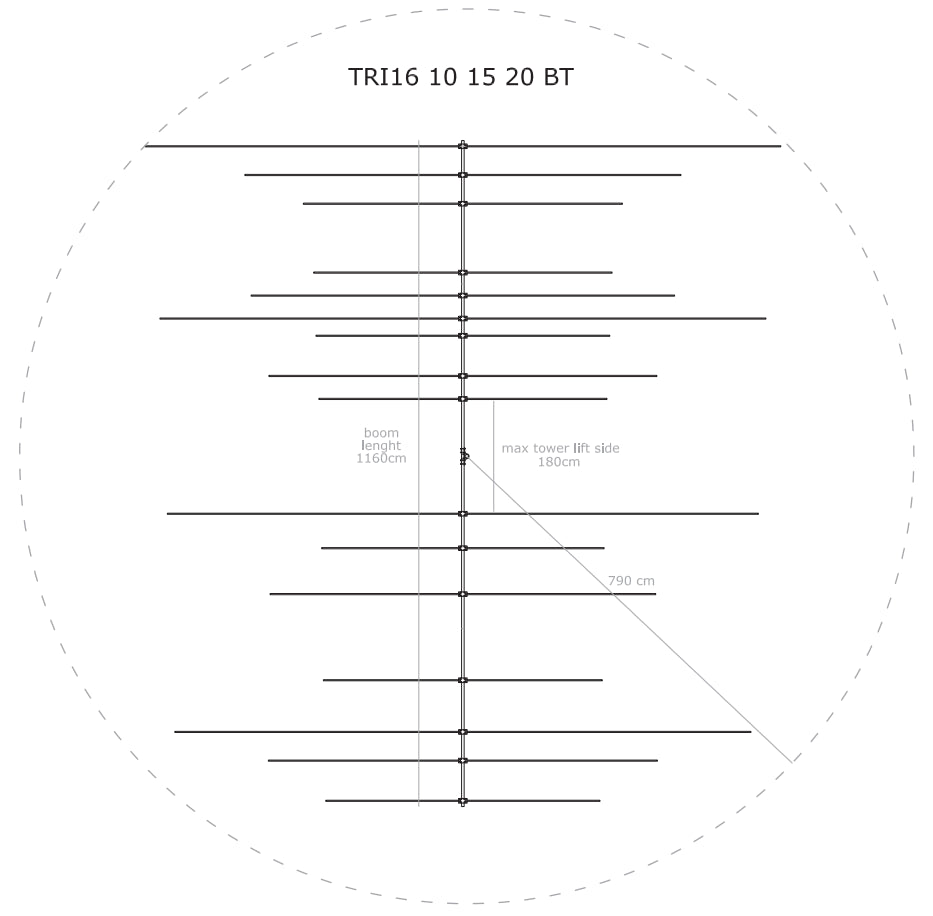

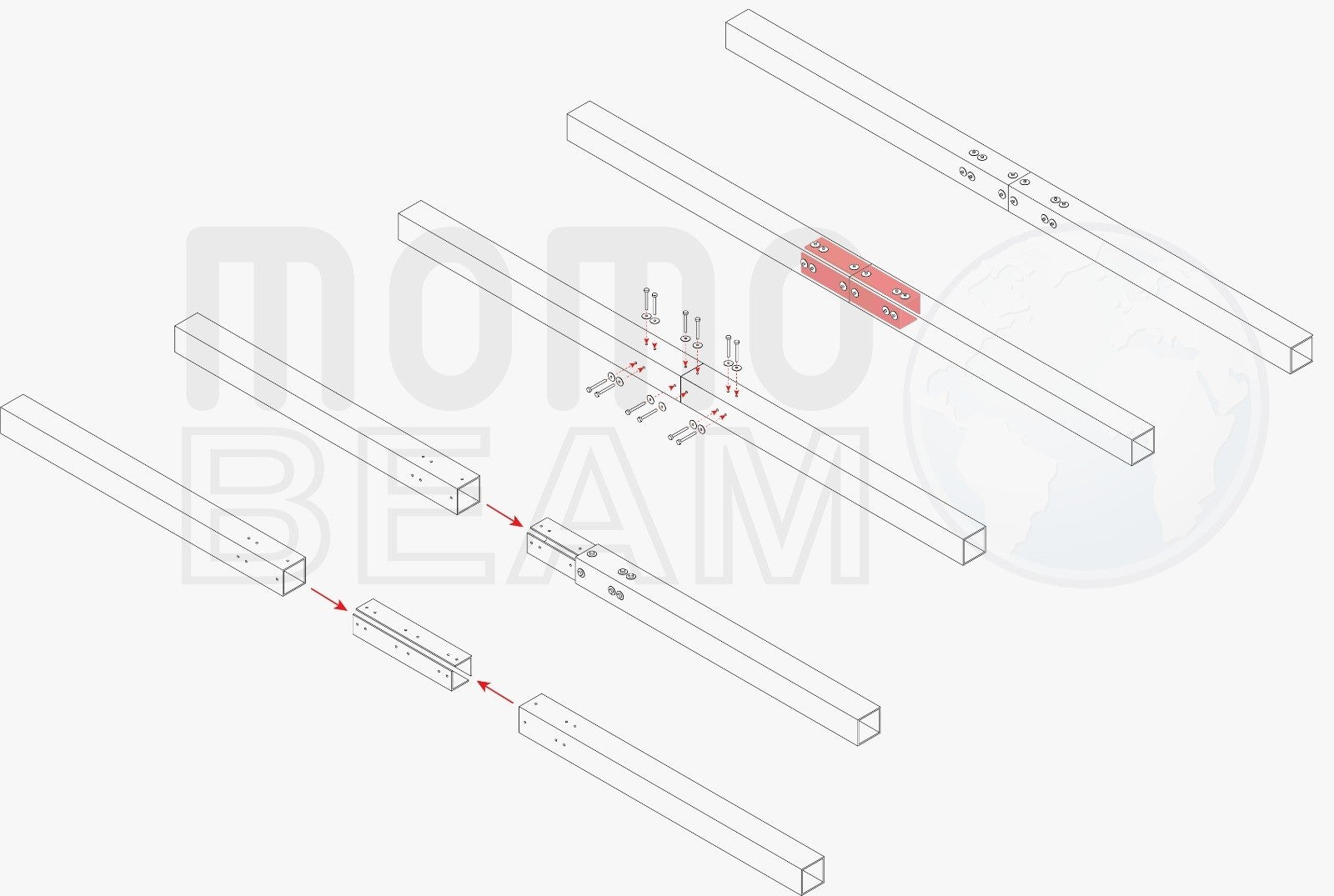

| Boom Length: | 1160 cm/38 ft | ||
| Turning Radius: | 790 cm/25.90 ft | ||
| Feedlines Required: | 1 x 50 Ohm | ||
| Max Lift Tower Side: | 180 cm/5.90 ft | ||
Longest Element: 1108 cm/36.35 ft
Power Handling: 10 kW
Wind Surface: 1.53 m²/16.46 sq ft
Wind Load 130Km/h: 1243 N
Wind Survival*: 160 Kmh – 100 Mph
Tower Leg/Mast Diameter: 50/60 mm – 2/2.36 inches (larger on request – specify on order form)
RF Choke: 3 KW included
Weight (packaging excluded): 90 Kg/198 lb

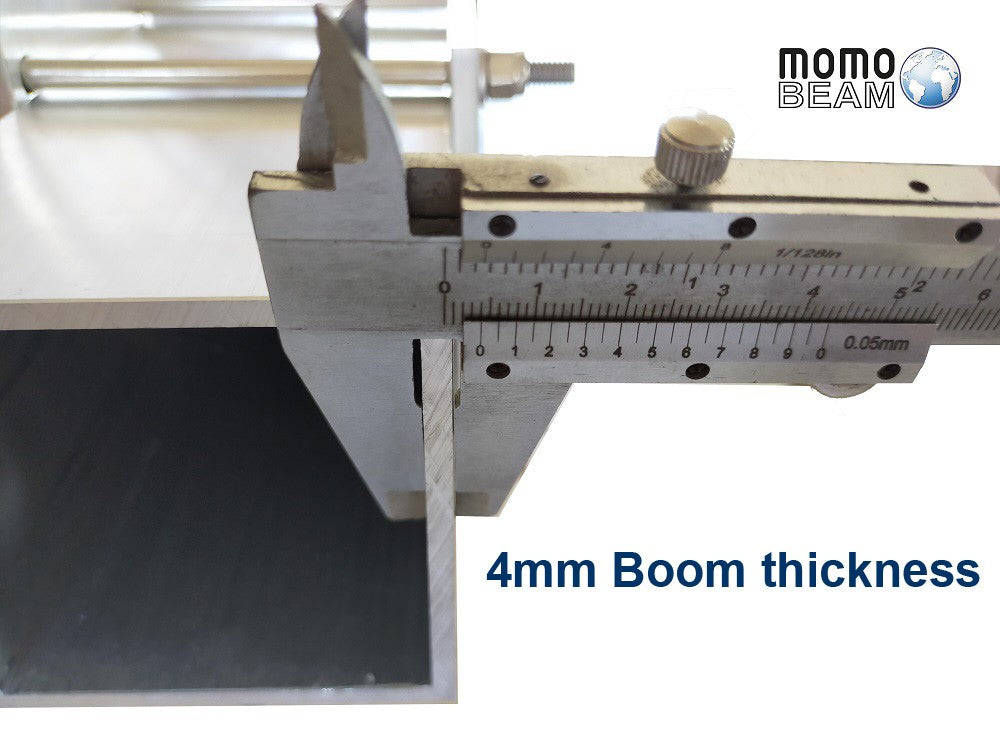

MATERIALS USED
Tubes and plates: 6060T6 aluminum alloy
Hardware: stainless steel
Insulating clamps: UV resistant polypropylene
Manual: English
*Wind survival is the maximum wind speed the antenna can withstand without permanent deformation (calculated without ice)
**The Momobeam RF Choke (offered as standard, rated at 3 KW) is made with high-quality, double-shielded, low-loss Teflon dielectric coaxial cable with appropriately selected ferrite material that is coated on the cable, which together create a high-impedance path for RF, providing high isolation between the antenna and the coaxial feed line.
An SO-239 female connector is included for convenient connection to the customer's feed line and their PL-259 male connector.
The 5 KW and 10 KW rated RF coils (optional purchase) are made with the same materials, except that the coaxial cable has a diameter of 10 mm.
The 10KW version uses a DIN 7/16 style connector.
