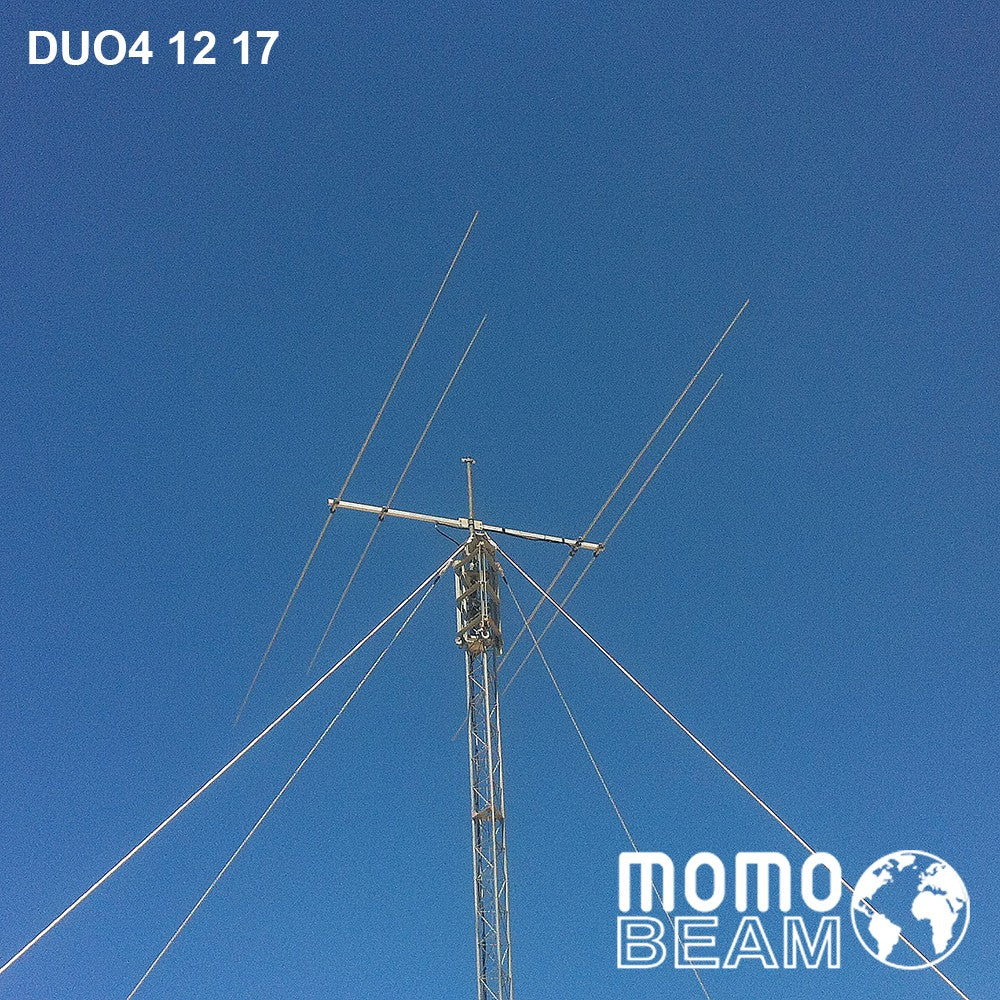

DUO4 12 17 is a dualband yagi for the WARC bands of 12 and 17 meters with very compact dimensions and full-size elements.
The peculiarity of this antenna is that the 24 MHz driver is not directly connected, but is of the "open sleeve" type. This greatly simplifies the antenna assembly.
It has a low SWR on all operating bands and is perfectly suited for modern transceivers and linear amplifiers.
The DUO4 12 17 can be installed on large towers with sides up to 250 cm
Requires only one coaxial cable.
Suitable for crank-up towers with 180cm side
Requires a rotor for a small load
RF choke: 3kW included
Availability: Within 2 weeks
| DUO4 12/17 | 12 mt | 17 mt |
|---|---|---|
| Gain dBi: (20 meters above ground) |
11,5 | 11,3 |
| Gain dBd free space: | 3,95 | 3,73 |
| F/B: | 13 | 10 |
| Active elements: | 2 | 2 |
| Bandwidth KHz SWR ≤ 1.5:1 |
100 | 100 |
| Boom length: | 300 cm | |
| Turning radius: | 460 cm | |
| Required feedlines: | 1 X 50 Ohm | |
| Max crank-up tower side: | 180 cm | |
3
Longest element: 840 cm
Power handling: 10 kW
Wind surface: 0,38 m²
Wind load 130Km/h: 307 N
Wind survival*: 130 Kmh
Mast mount: 50 mm (larger on request)
Balun: 3/5/10 kw (not included, to be purchased separately)
Weight (excluding packaging): 15 Kg
MATERIALS USED
Tubes and plates: aluminum alloy, 6060T6
Bolts: stainless steel and galvanized
Insulator shells: UV resistant polypropylene
Manuals available: Italian – English – Español
*Wind survival is the maximum wind speed that the antenna can withstand without permanent deformation (value calculated in the absence of ice)
