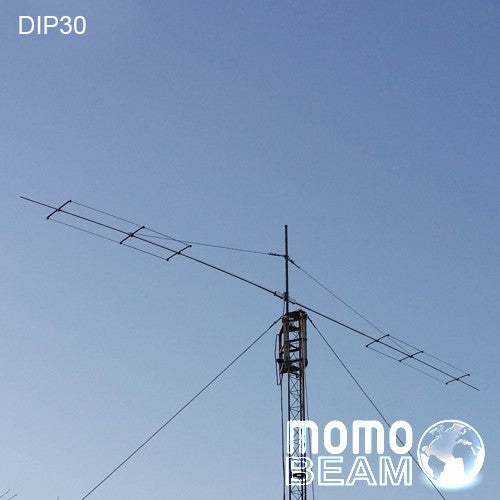

DIP 30 is a rotary dipole for the 30-meter band (10.1 MHz). It uses the exclusive F.T.L (Folded Top Load) system which reduces the antenna's size without compromising performance or bandwidth, thus reflecting those of a full-size antenna.
The maximum applicable power has no limits, and the performance is truly excellent. The S.W.R. is less than 1:1.5 across the entire band, just like a full-size antenna! Direct feeding (via 1:1 balun or RF Choke) at 50 Ohm.
Requires a rotor for an average load
RF choke: 3kW included
Availability: Within 2 weeks
| DIP 40 | 40 m – 7 MHz |
|---|---|
| Gain dBi: (at 20 meters from ground) | 0,0 |
| Gain dBd free space: | 2,14 |
| F/B: | 0 dB |
| Active elements: | 1 |
| Bandwidth KHz SWR ≤ 1.5:1 | 200 |
| Boom length: | 0 cm |
| Turning radius: | 800 cm |
| Required feed lines: | 1 X 50 Ohm |
Longest element: 1600 cm
Applicable power: 10 kW
Wind area: 0.35 m²
Wind load 130Km/h: 000 N
Wind survival*: 130 Kmh
Mast connection: 40/60 mm (larger on request)
Balun: 3/5/10 kw (not included, to be purchased separately)
Weight (packaging excluded): 16 Kg
MATERIALS USED
Tubes and plates: aluminum alloy, 6060T6 – 6082T6
Bolts: stainless steel
Insulator shells: UV resistant polypropylene
Manuals available: Italian – English – Español
*Wind survival is the maximum wind speed the antenna can withstand without permanent deformation (value calculated in the absence of ice)
