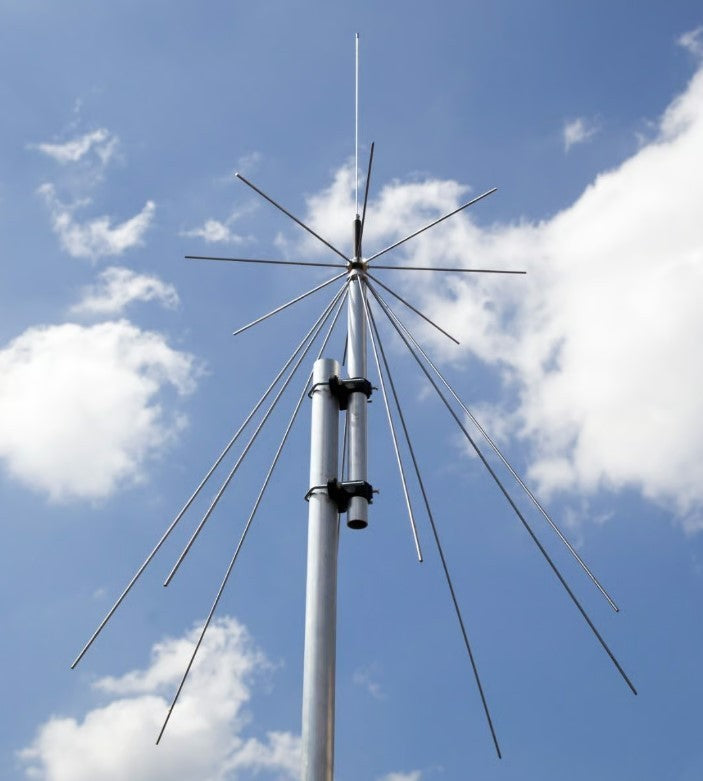

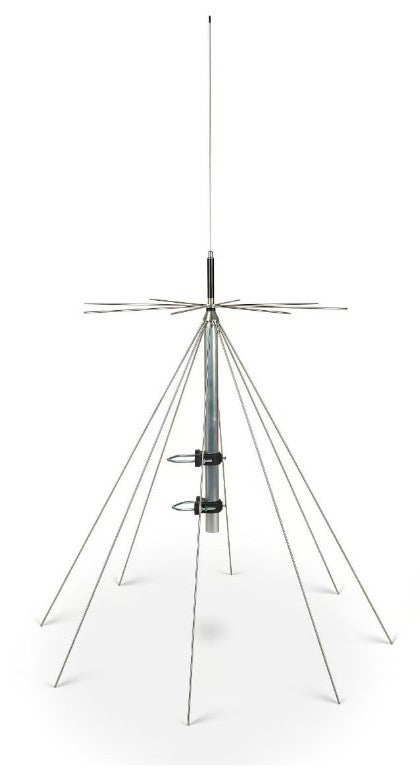

ScanKing Royal Discone
The Best Ultra-Wideband Discone Antenna (25-2000 MHz)
Unrivaled Performance on the Market
The Eco Antenne ScanKing Royal Discone 2000 is widely considered the best "all-round" discone antenna available for the demanding enthusiast. It not only offers exceptional reception from 25 to 2000 MHz but also provides the rare ability to transmit with excellent SWR on the 6m, 2m, 70cm, and 23cm bands.
With an imposing 155 cm structure and a total of 16 radials (8 long and 8 short), this antenna ensures a perfect ground plane and a gain of up to 2.15 dBi. The choice of Type N connector is essential for a product of this class, ensuring minimal signal dissipation even beyond GHz, where common PL connectors would fail.
Top Reception2000 MHz Total coverage for every scanner. |
Quad-Band TXMulti-Band Transmits on 50/144/430/1200 MHz. |
Structure16 Radials Omnidirectional signal stability. |
Technical Specifications
| RX Frequency | 25 - 2000 MHz |
| TX Frequency | 50-52 / 144-146 / 430-440 / 1240-1325 MHz |
| Nominal Gain | Up to 2.15 dBi |
| Radial Configuration | 8 x 83 cm + 8 x 29 cm |
| Total Length | 155 cm |
| Connection | Type "N" (Professional) |
| Mounting Support | Compatible with poles up to 50 mm |
