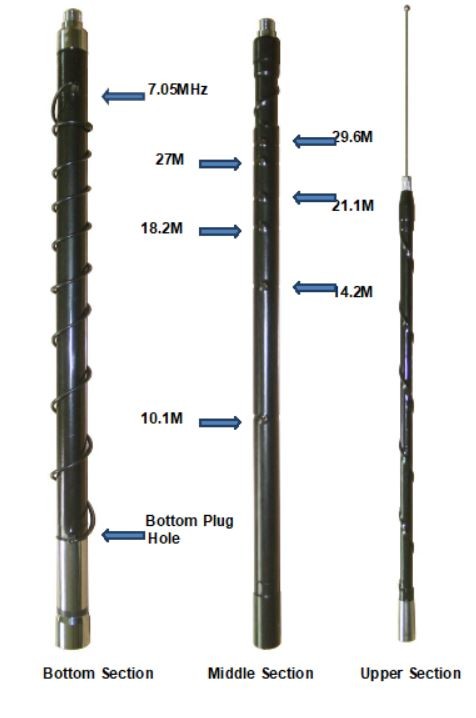

HF ANTENNA FOR 10 TO 80 METER BANDSAntenna built in three sections that screw into each other, plus an adjustable stainless steel whip, total height approx. 2 meters. To be used predominantly with the vehicle stationary or with a triple magnetic base, not at high speeds, as this is a thicker antenna than usual vehicle antennas (approx. 2.5 cm for the first section, 2 cm for the second, 1.3 cm for the third). Also an excellent solution for balcony mounting for many who cannot mount antennas on the roof. Just fix it on a bracket with an SO239 connector and add some counterweight wires. Instructions: Assemble the 3 sections of the HF-MB01. Extend the upper stainless steel whip to approximately 50 cm (depending on the different environment). Antenna frequency: 1) 3.75 M, no connection cable needed. 2) 7.05 M, 10.1 M, 14.2 M, 18.2 M, 21.1 M, 27 M, 29.6 M. Place one end of the connection cable in the bottom hole and the other end from the bottom to the upper holes, as shown in the diagram (the connection cable must wrap around the spiral antenna). Installation method: It comes with an M10/PL259 adapter and can also use the optional M10 screw for different results. |
|
