HF-M10-40
HF Mobile Antenna for 10/15/17/20/30/40 Meter Bands

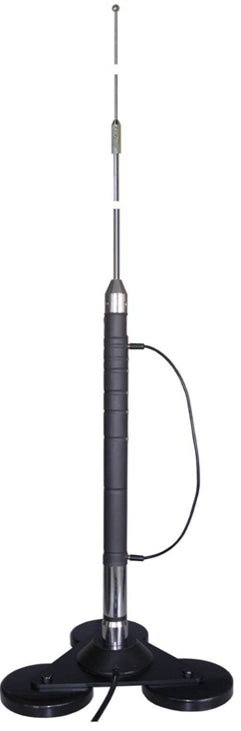

(The magnetic base shown in the photo is for installation example only and is not included in the offer)
|

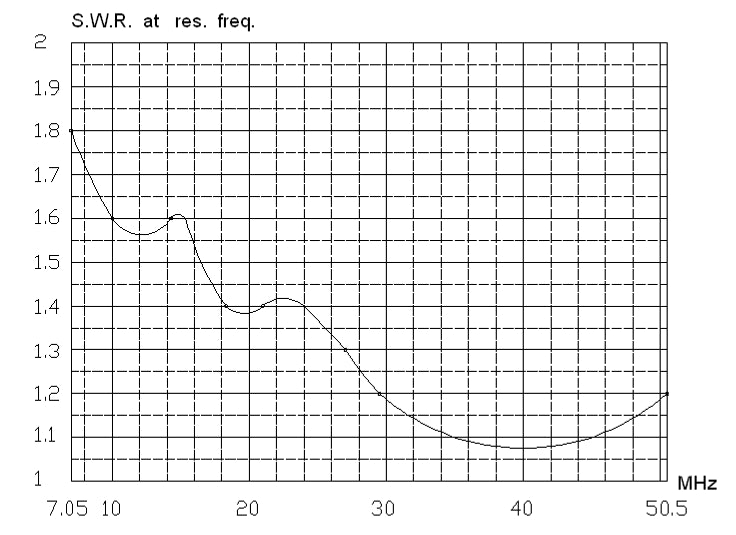

ELECTRICAL SPECIFICATIONS Frequency Range------------------------------ 7.05/10.1/14.2/18.2/21.1/28 29.6/35-38/50.5 MHz Impedance-------------------------------- 50 Ohm VSWR------------------------------------- =2 Gain---------------------------------------- 1.3 dBi-2.15 dBi Polarization-------------------------------- Vertical Maximum input power--------- 130 W Lighting protection---------------------- Direct Ground MECHANICAL SPECIFICATIONS Height------------------------------------- 1953±10 mm Radiating element material ------------- Stainless steel Supplied hardware material------- Aluminum alloy Magnetic base diameter-------------- Ø90x3 mm Cable---------------------------------------------- 4 m RG58U Connector-------------------------------- PL259 |
 |
| |
