ECO ANTENNE DELTA LOOP 20 METERS - triband wire loop
DELTA-20HP is a full-wave loop designed to operate on 20 m (14 MHz) and 10 m (28 MHz) without an ATU and other bands with an ATU.
There is a 4:1 balun at the feed point which allows it to be fed directly with a 50 ohm coaxial cable - RG-213 or Mini 8 are probably the best, but other 50 ohm coaxial cables can also be used.

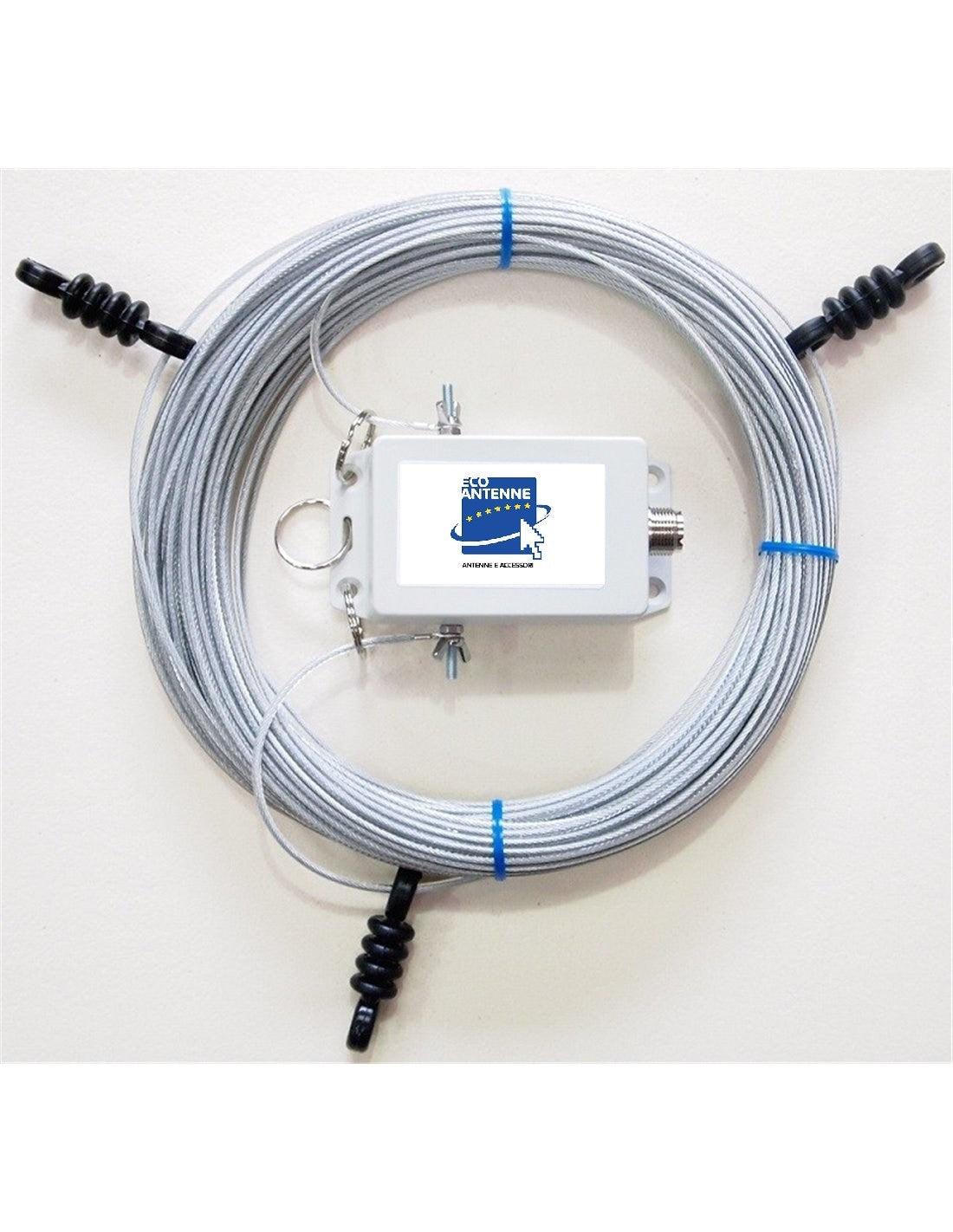

The loop comes complete with three insulators to provide the anchor points. It can be mounted horizontally or vertically.
It can also be configured as a square (Quad) or an equilateral triangle (Delta).
DELTA configuration.
Configured as a delta loop or equilateral triangle, if arranged horizontally it will be good for short/medium distance contacts. If vertical, or near vertical, it will provide low angle radiation excellent for long-range DX in the direction of the loop (looking straight into the front). In this configuration, it gains 2.8dBd.
FULL WAVE QUAD LOOP If placed horizontally, it is useful for NVIS, and gains 2.8dBd in the vertical direction.
Configured at a 45-degree slope it will provide low-angle DX.
Technical Specifications:
Maximum power 400 W CW, 500 W PEP
Gain 2.8 dBd max
Total loop dimensions 20.28 m
Side dimension in delta: 6.76m
Side dimension in quad: 5.07m
Radiating wire: High-strength anti-twist Polyflex
Feed Point Balun 4:1 HP
