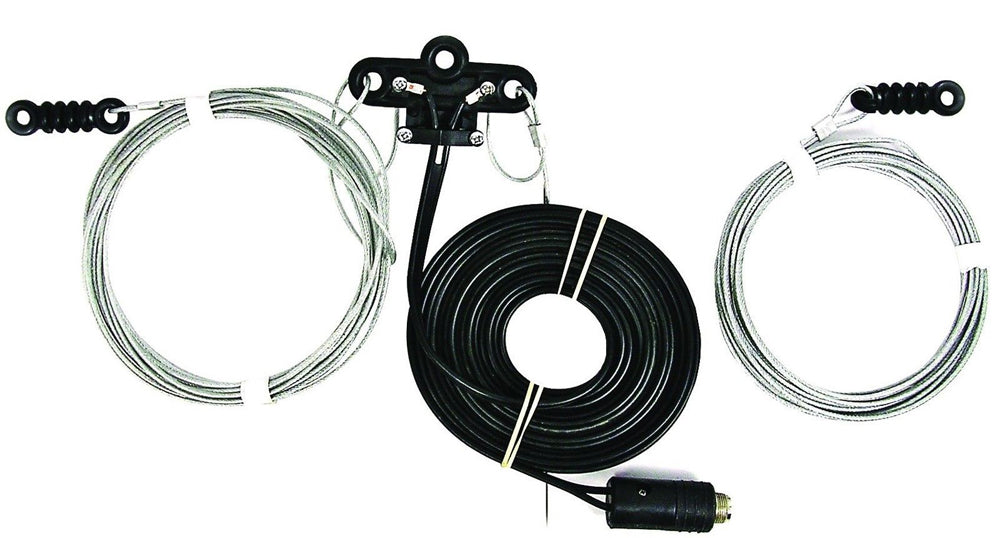

The full-size HF ECO ANTENNE G5RV is an amateur HF antenna, receiving and transmitting, covering the 80m to 10m bands. Its total length is approximately 32 meters (102 feet) and should be fed with good quality 50 Ohm coaxial cable (recommended feed length of 13.7 meters or 27.4 meters) (45 or 90 ft). The ladder line should hang downwards and forms part of the radiating antenna. To achieve optimal results, this antenna should be mounted as high as possible, either horizontally or in an inverted "V" formation, with the center mounted at least 11 meters (36 ft) from the ground. The 1/2 wave superior G5RV is fully assembled and ready to go. In addition, the Poly Weave wire will not kink and is extremely strong. Excellent for use where space is limited, good for discreet garden or attic installation and also highly recommended for shortwave listening. Made in UK
Technical specifications:
Frequency: 3.5-30 MHz.
Bands: 80-10 meters.
Total length: 32.4 meters (102 feet).
Non-kink single-pole wire: 2 x 16.2 meters (51 feet).
Wire elements.
Ladder line.
Feed terminated with UHF-female (SO-239) socket.
2 x insulators.
Complete with instruction sheet.
Made in Great Britain.
Package includes:
1 x Sigma G5RV1/2 antenna
1 x manual in English.
