MAT-S1500

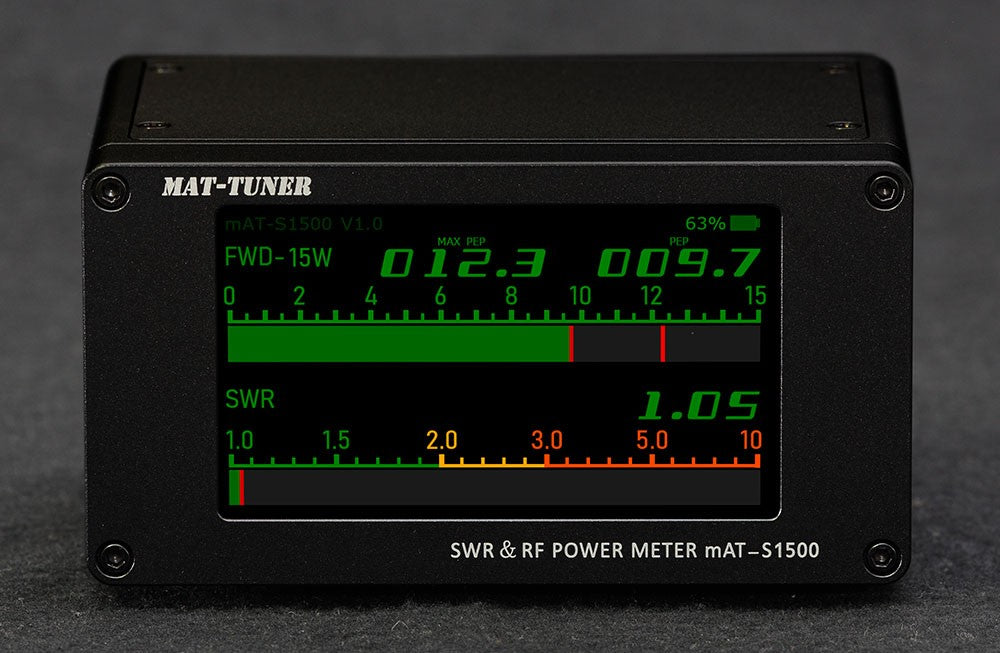

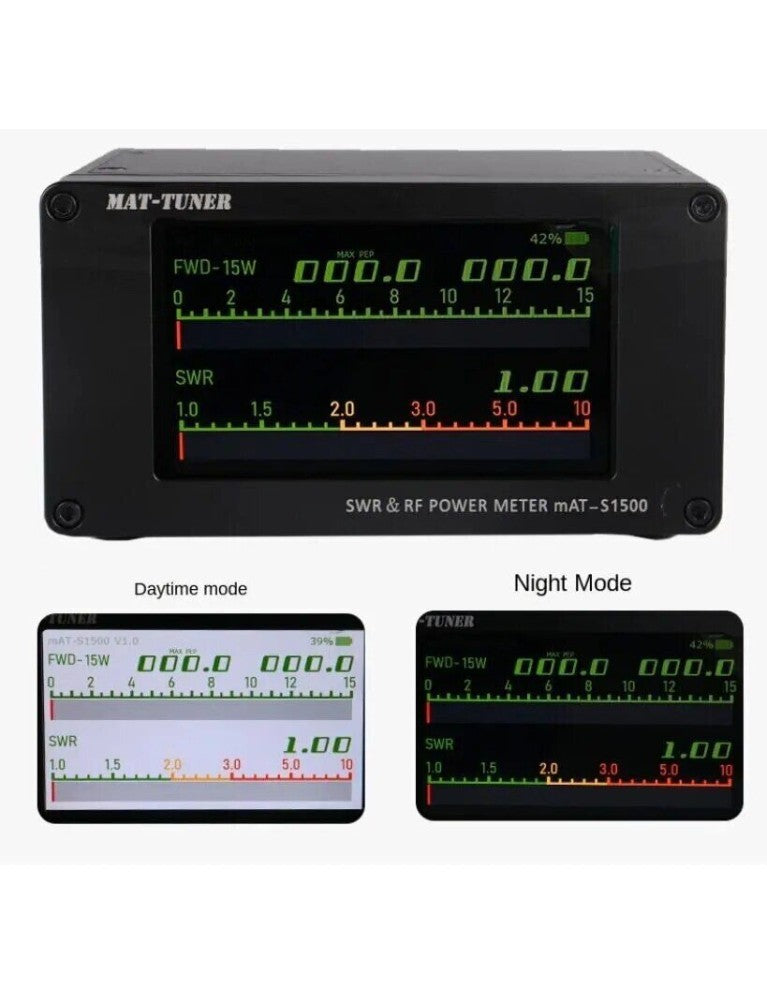

The mAT-S1500 is designed as an accurate instrument for monitoring station performance. It uses two dedicated RF measurement chips, which can accurately measure the power and SWR of the RF system, but cannot display information such as spectrum and impedance. The mAT-S1500 features a 4.3" diagonal TFT color screen that displays the current RF power and SWR through bar graphs and digital displays. It has two power supply methods. This mAT-S1500 is equipped with two 18650 high-capacity lithium batteries, which can work without additional power supply. Using the TYPE-C charging jack, users can easily use their phone charger to charge it. The charger is not an accessory of this meter and the user needs to prepare it by themselves. It also has an external DC power jack. You can power it with an external power supply; the internal battery is no longer used. This jack cannot charge the built-in battery. The mAT-S1500 is a very easy-to-use automatic meter. It has only one power switch, and it can automatically set the range according to the input RF signal. It can also automatically set the background color of the screen according to the brightness of the ambient light, helping users see the display better.
The body of the mAT-S1500 is made with aluminum milling technology, making it very delicate and sturdy.
Specifications
Power Range: Auto-ranging, 15, 150, and 1500 watts.
Power Accuracy: Within 3%, 1.8 to 30 MHz. +/- 5% at 7 MHz.
Frequency Range: 1.8 to 54 MHz.
SWR Range: 1.00 to 9.99
SWR Accuracy: Within 3%, 1.8 to 30 MHz.
Charge: 4.5 to 5.5 V, less than 1 A, less than 5 hours.
Size: 14.1 cm x 10.9 cm x 8.1 cm - 5.6"L x 4.3"D x 3.2"H
Weight: 1.21 kg
