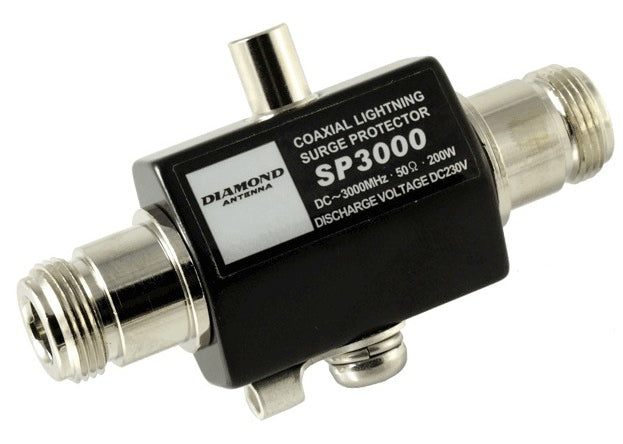

SP-3000
Diamond lightning arrester for in-line use; The protector can be used directly on the coaxial line at the base of the antenna or radio.
FEATURES:
- Frequency Range: DC-3000 MHz;
- Impedance: 50 Ω;
- VSWR: Less than 1.2;
- Insertion Rating: 200 WPEP;
- DC Breakdown Voltage (100V/S): 230 V ± 20%;
- Max. Impulse Breakdown Voltage (1000/μ S): 650 V;
- Nominal Impulse Discharge Current (8/20 11S 10T/Mes): 10kA;
- Impulse Life (10/1000 μ S) 100 A (TIMES): 300 times;
- DC Holdover Voltage: 150
- Insulation Resistance: Over 10,000 M Ω
- Connector: N-J
- Outer dimensions (mm): 78Wx41Hx20D:
Weight(approx.):110g
