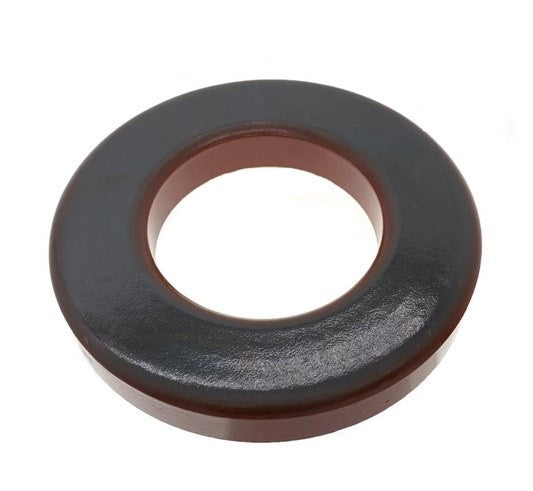

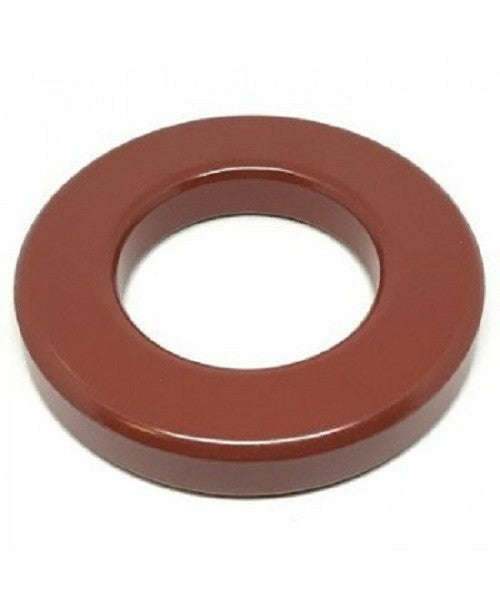

Toroide T300-2
T300-2 quantity 1 pieces Optimum Resonant Circuit Range 250 KHz - 30 M
| Physical Dimensions OD = 3.0 in / 76.8 mm +/- 0.025 in ID = 1.77 / 45.8 mm +/- 0.025 in Ht = .550 / 14.0 mm +/- 0.03 in |
| AL=11 +/- 5 % uH=(AL*Turns2)/1000 |
| Temperature Stability (ppm /°C) = 95 productor:micrometals |
| Color Code = Red / Clear |
| Optimum Resonant Circuit Range for highest Q and lowest core loss 250 KHz - 30 MHz |
Colore: ROSSO
Toroide Amidon

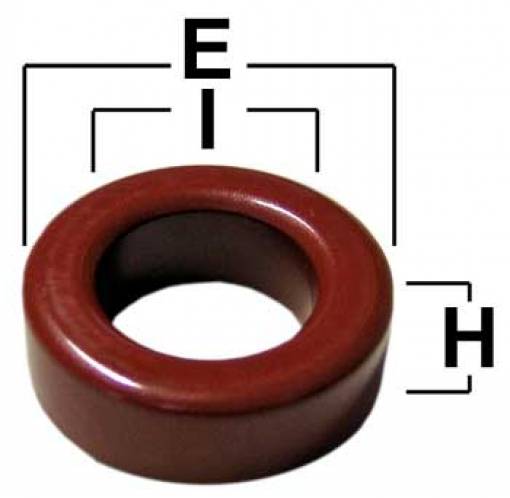

E = 77.2 mm
I = 49 mm
H = 12.7 mm
μi = 10
AL 100 spire = 114 μH
Banda = 0.25 - 30 MHz
