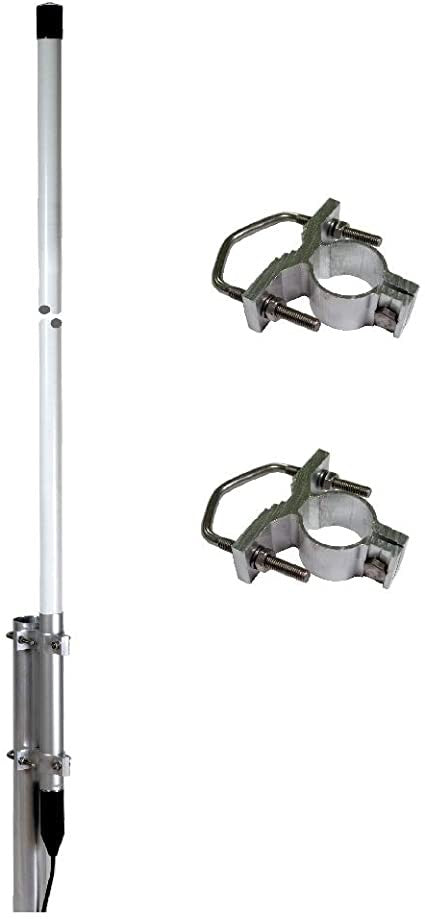

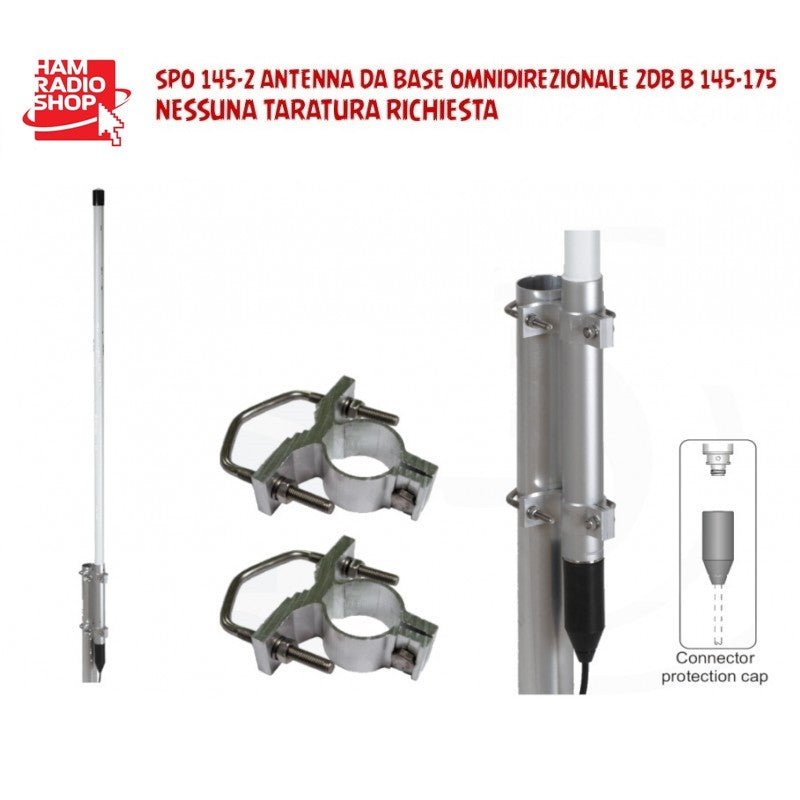

Sirio SPO-145
Antenna professionale larga banda 145-175 MHZ
Ottima per ponti radio o stazioni base Radioamatoriali, BAnda Marina, Banda commerciale e istituzionale.
| P/N: 2115020/145 | SPO-145-2 |
Electrical Data:
| Type: | 1/2 onda |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 145-175 MHz @ SWR =1.5 No tuning required |
| Systems: | 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz |
| Gain: | 0 dBd – 2.15 dBi |
| Max Power: | 100 W (CW) |
| Grounding protection: | DC-Ground |
| Connector: | N-female |
Mechanical Data:
| Materials: | Anodized Aluminium, Brass, Stainless steel, Fiberglass, EPDM rubber |
| Height (approx): | 1380 mm / 4.53 ft |
| Weight (approx): | 1315 gr / 2.9 lb |

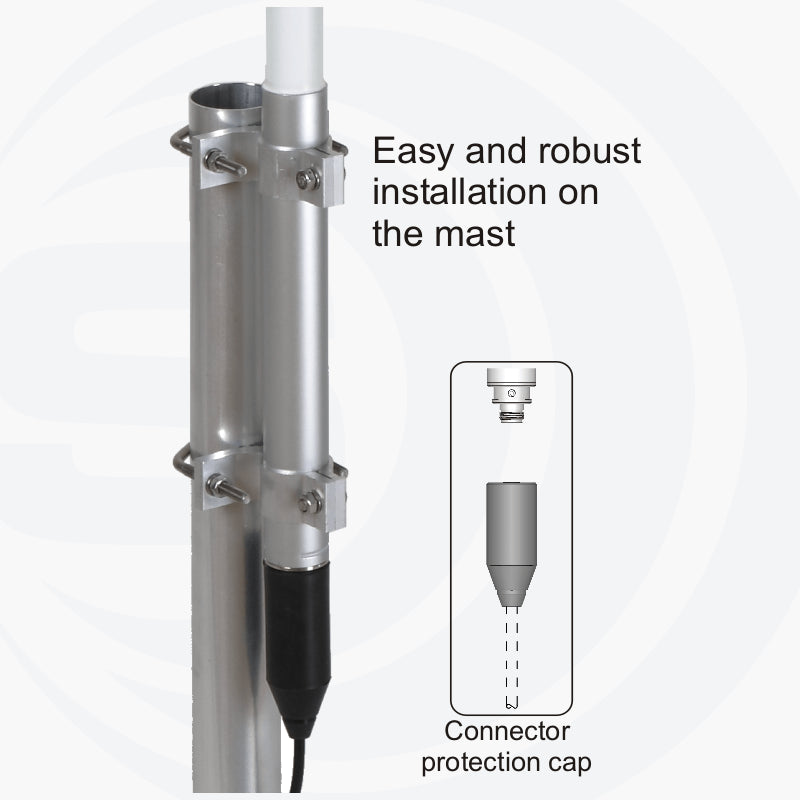

| Mounting type: | On-Mast |
